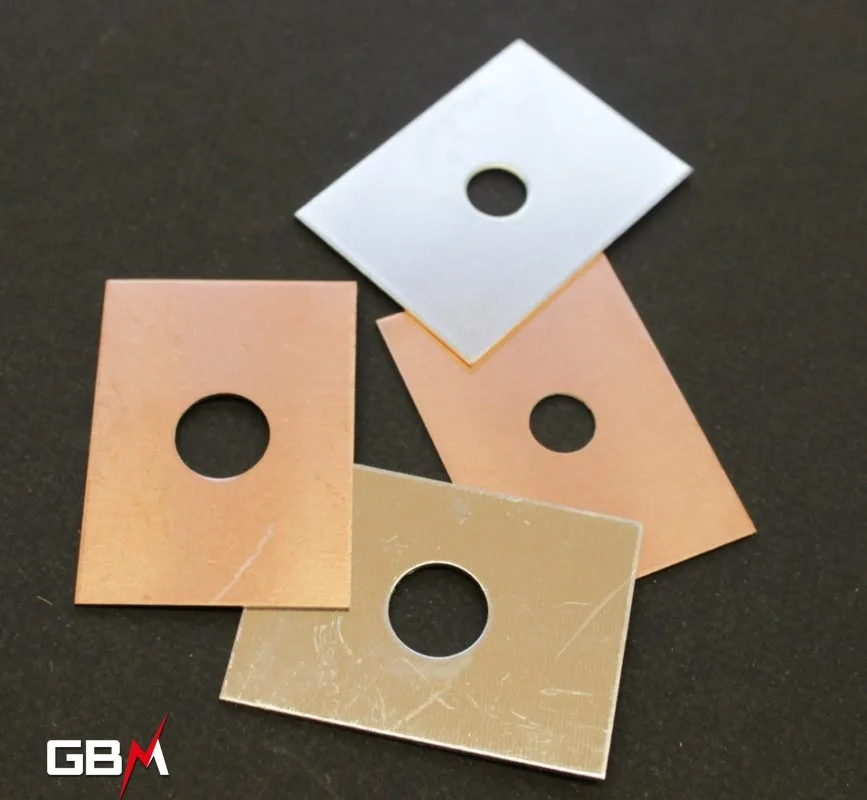

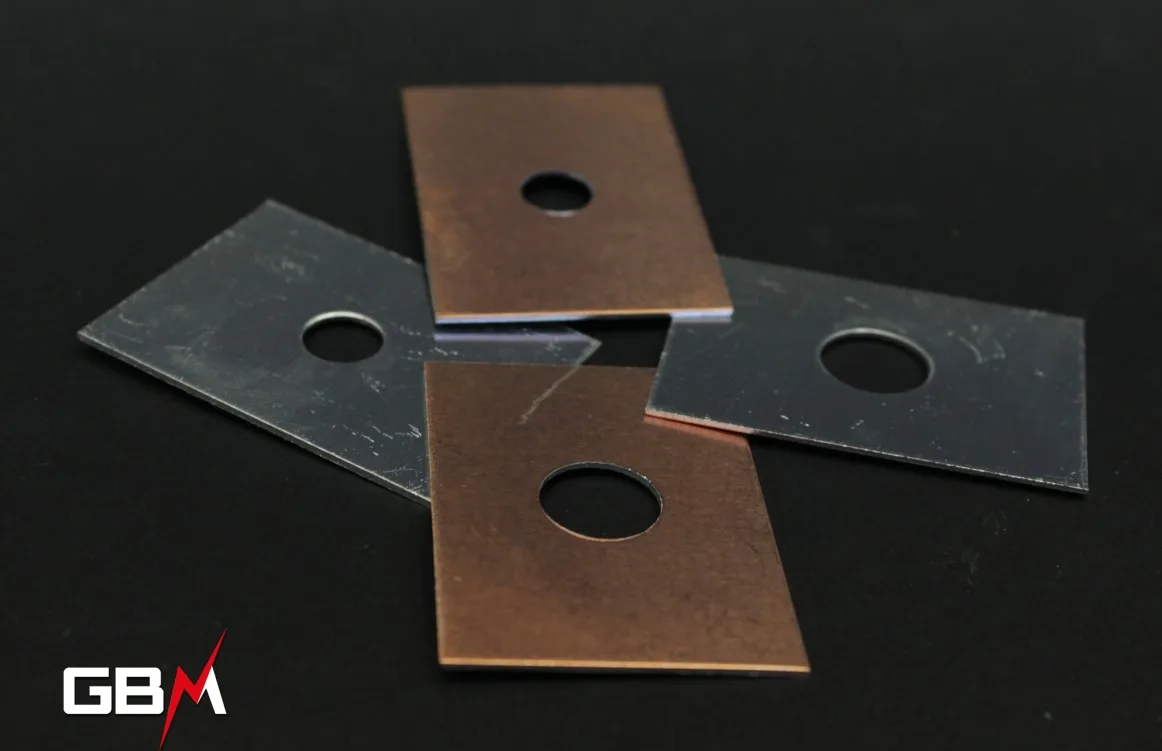

Copper / aluminum bimetallic plates
Copper-Aluminum Bimetal Plate.
Reference | Dimensions L x l x e (mm) | ØA (mm) | Weight/100 pièces (Kgs) | Packaging |
|---|---|---|---|---|
| PBI8,5 | 55x40x1 | 8,5 | 0,8 | 50 |
| PBI10,5 | 55x40x1 | 10,5 | 0,8 | 50 |
| PBI13 | 55x40x1 | 13 | 0,77 | 50 |
| PBI14,5 | 50x40x1 | 14,5 | 0,75 | 50 |
| PBI16,5 | 55x40x1 | 16,5 | 0,70 | 50 |
* Other dimensions possible on request
