Butt sleeves

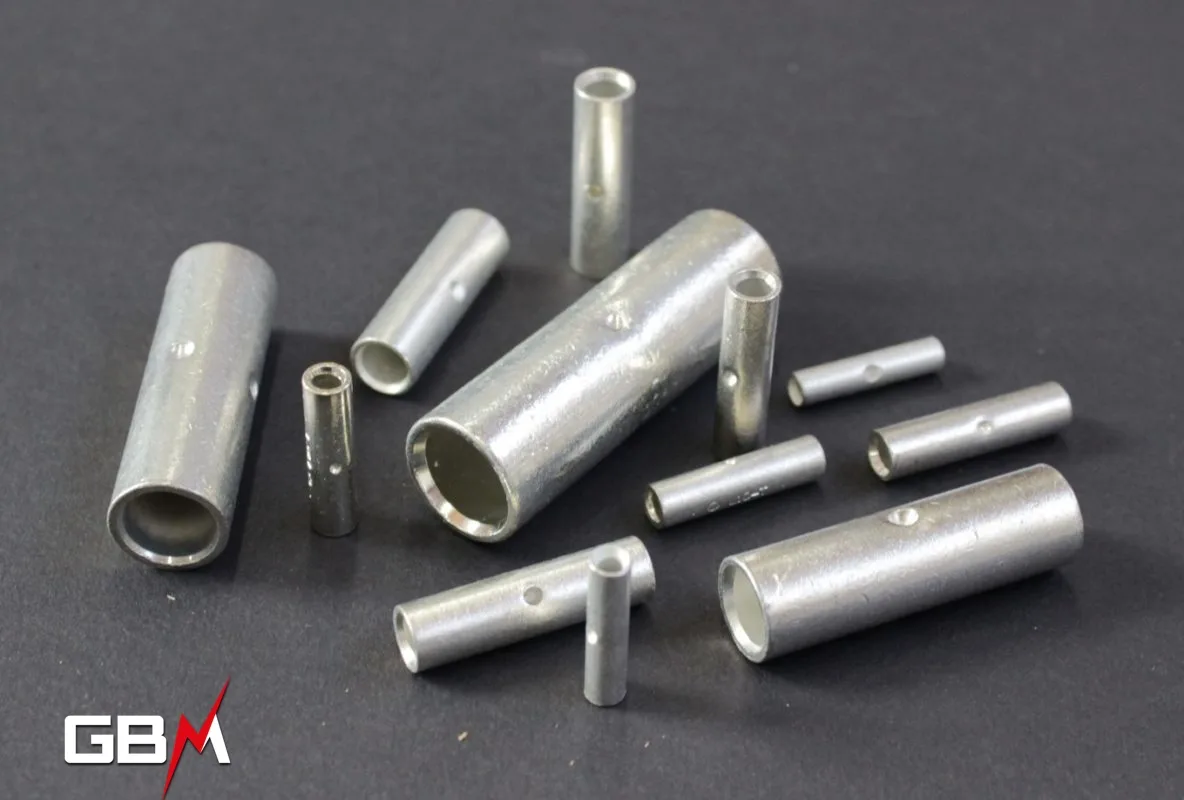

Butt sleeves for copper cable, they are made from a tinned copper tube. Chamfered ends for easy cable introduction.

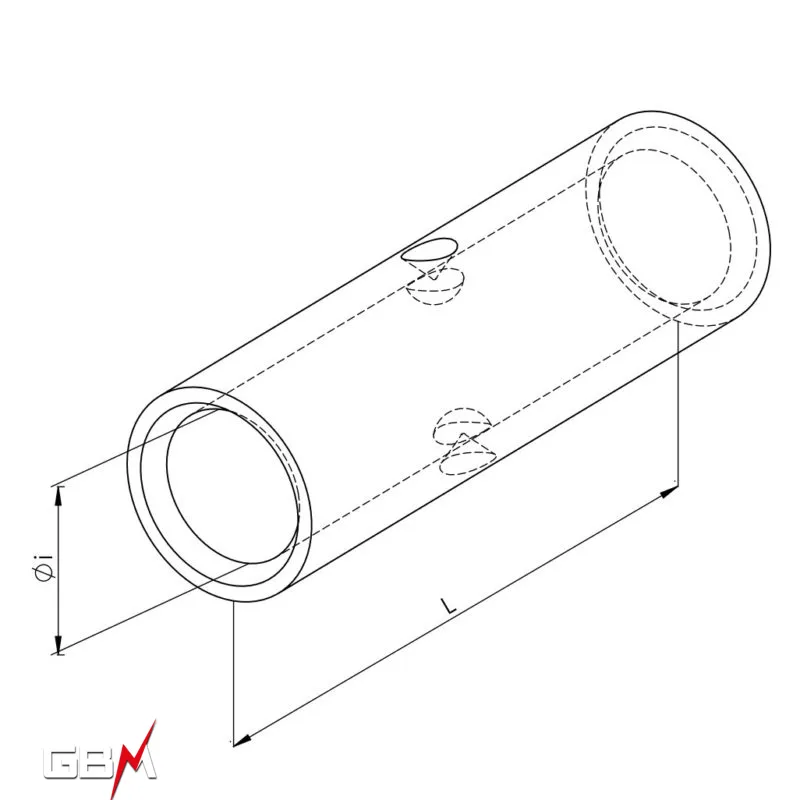

Reference | Rigid cable section (mm²) | Flexible cable section (mm²) | Dimensions Øi (mm) | Weight g (Pce) | Packaging (Pces) |
|---|---|---|---|---|---|
| MJBB6 | 6 | 6 | 3,3 | 3,717 | 100 |
| MJBB10 | 10 | 10 | 4,2 | 5,36 | 100 |
| MJBB16 | 16 | 16 | 5,3 | 7,96 | 100 |
| MJBB25 | 25 | 25 | 6,6 | 11,85 | 100 |
| MJBB35 | 35 | 25 | 7,9 | 15,56 | 50 |
| MJBB50 | 50 | 35 | 9,2 | 22,44 | 50 |
| MJBB70 | 70 | 50 | 11,0 | 37,533 | 50 |
| MJBB95 | 95 | 70 | 13,1 | 47,09 | 25 |
| MJBB120 | 120 | 95 | 14,5 | 64,48 | 25 |
* Other models possible on request.
