Thin Wall Heat Shrink Tubing
International industrial specifications • UL 224 125 ° C VW1 600V, RoHS.
Flame retardant.
2/1 shrinkage from 70 ° C.
Temperature for full shrinkage: + 100 ° C.
Operating temperature: -55 ° C / + 135 ° C.

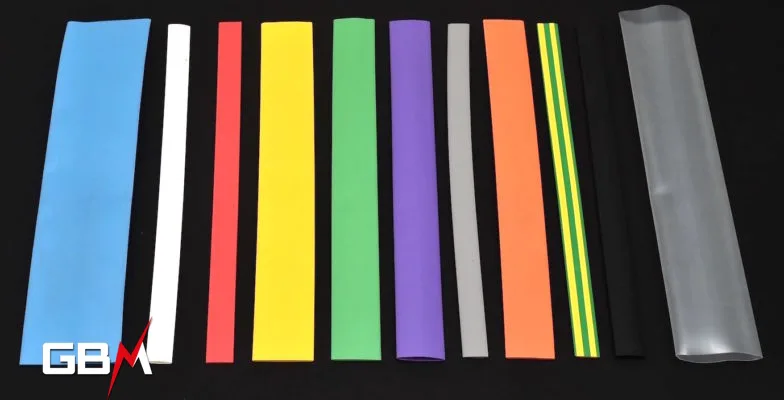

Standard colors: Black, red, yellow, blue, white, green, transparent.
Non-standard colors: Gray, purple, orange, brown, green / yellow.
Reference | Mini expanded/maxi recovered diameter | Wall thickness after constriction | 1 meter bar packaging |
|---|---|---|---|
| TFE-3/64 | 1,2/0,6 | 0,40 | 10 |
| TFE-1/16 | 1,6/0,8 | 0,43 | 10 |
| TFE-3/32 | 2,4/1,2 | 0,51 | 10 |
| TFE-1/8 | 3,2/1,6 | 0,51 | 10 |
| TFE-3/16 | 4,8/2,4 | 0,51 | 10 |
| TFE-1/4 | 6,4/3,2 | 0,64 | 10 |
| TFE-3/8 | 9,5/4,8 | 0,64 | 10 |
| TFE-1/2 | 12,7/6,4 | 0,64 | 10 |
| TFE-3/4 | 19,0/9,5 | 0,76 | 5 |
| TFE-1 | 25,4/12,7 | 0,89 | 5 |
| TFE-1.1/4 | 32,0/16,0 | 1,02 | 5 |
| TFE-1.1/2 | 38,0/19,0 | 1,02 | 5 |
| TFE-2 | 50,8/25,4 | 1,14 | 5 |
| TFE-3 | 76,5/38,1 | 1,27 | 5 |
| TFE-4 | 101,60/50,8 | 1,40 | 5 |
* Add the color behind the reference.
