Winged earth shoe

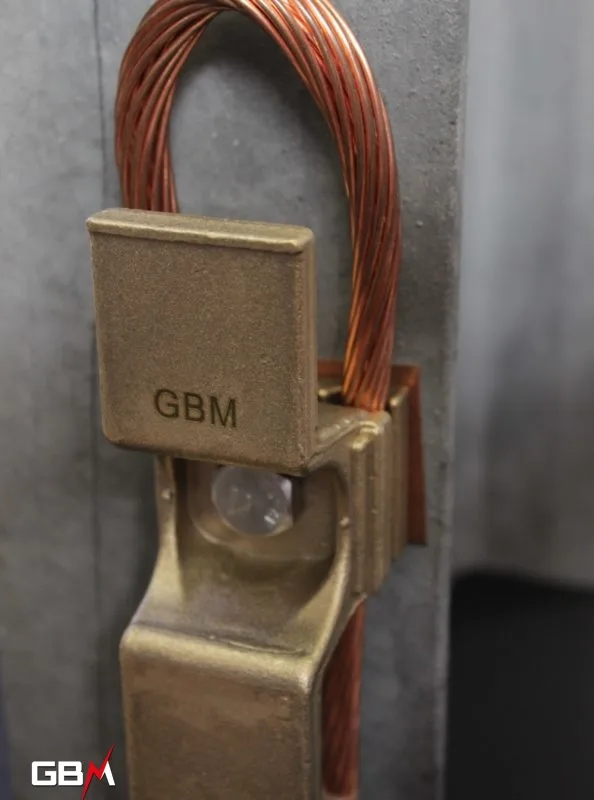

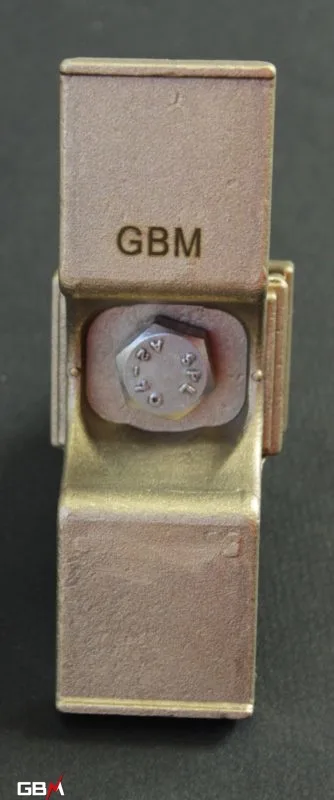

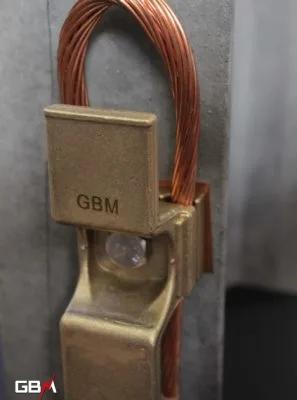

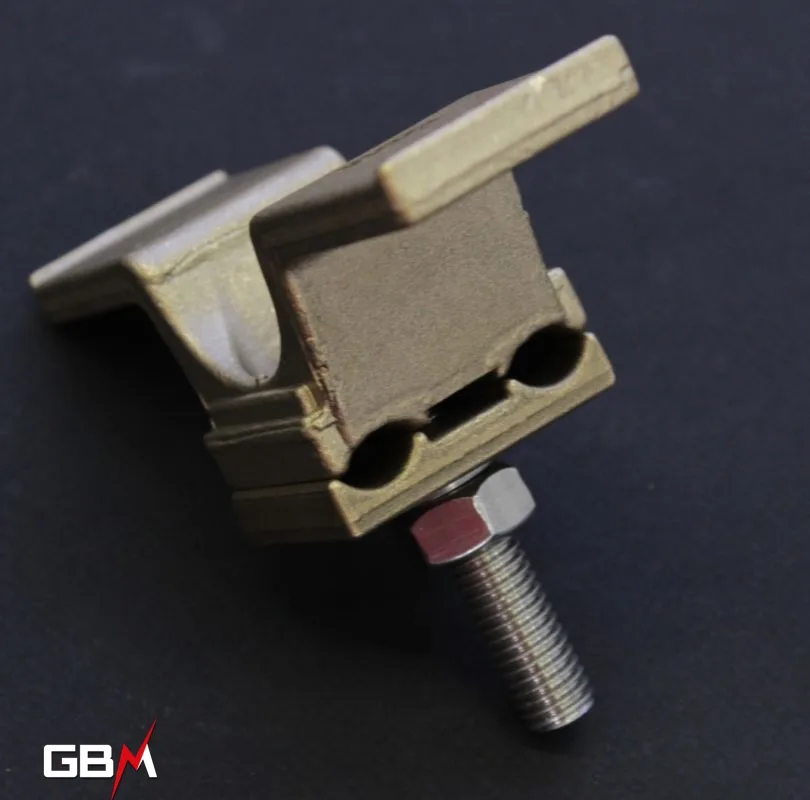

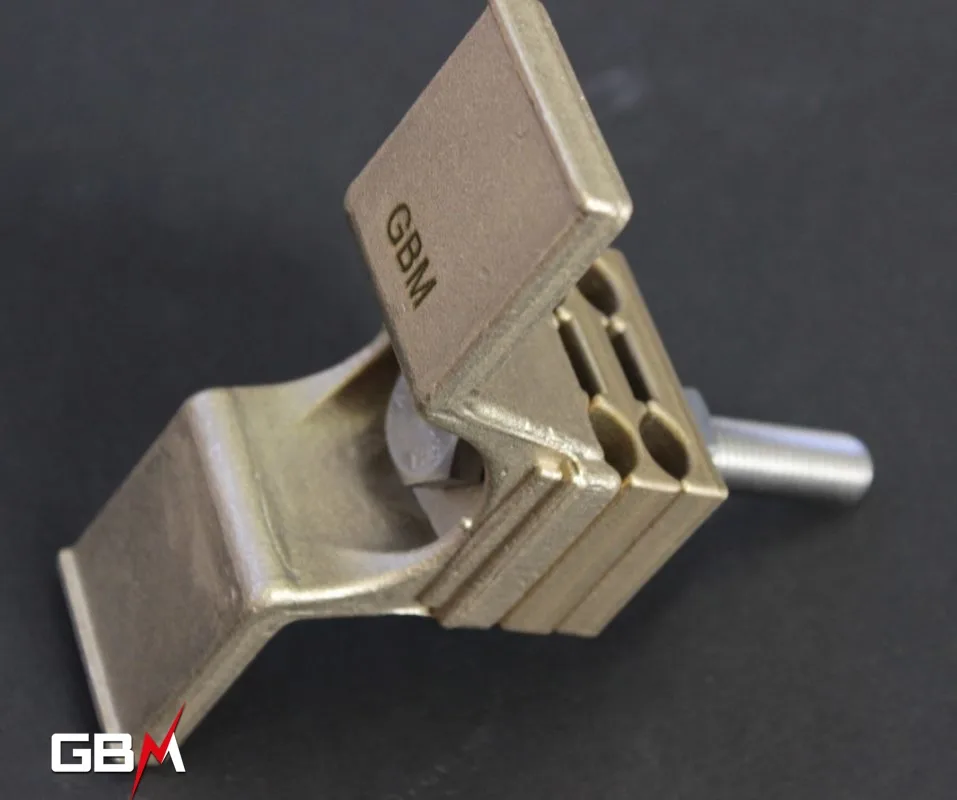

Single and double earth shoe with brass fin, stainless steel screws. Used to make earth loops on a frame and take the ohmic value of the earth.


Commander produit mise à la terre france GBM france
telecharger-ce-catalogue-mise-a-la-terre-materiel-professionnel-gbm-france

WINGED GROUND SHOE
Reference
Material
Conductor capacity (mm²)
Dimensions AxBxC (mm)
Bolting size (mm)
Weight Kg (Pce)
Packaging (Pces)
STA50-120Brass2x 50 to 120 mm²130x49x46M12x60 Stainless steel0,605
STA120-240Brass2x 120 to 240 mm²135x61x45M14x70 Stainless steel0,7845
STA185-300Brass2x 185 to 300mm²135x65x46M14x80 Stainless steel0,825
STDA50-120Brass2x 50 to 120 mm²130x49x58M12x80 Stainless steel0,7275
STDA120-240Brass4x 120 to 240 mm²135x61x59M14x90 Stainless steel0,935
STDA185-300Brass4x 185 to 300 mm²135x65x62M14x100 Stainless steel0,9835
