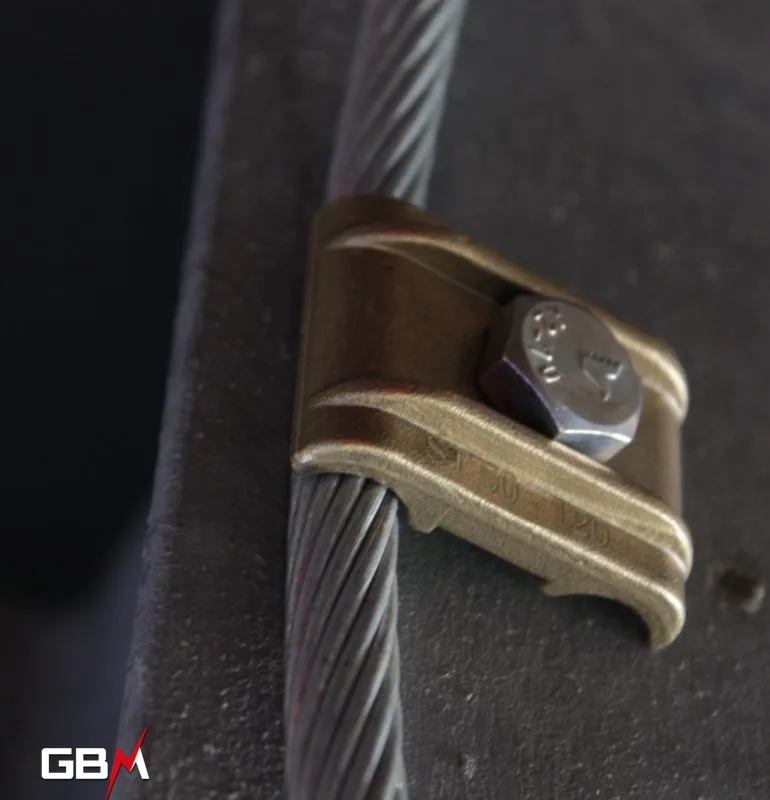

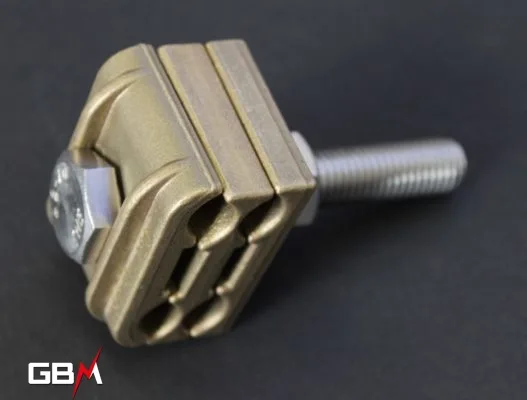

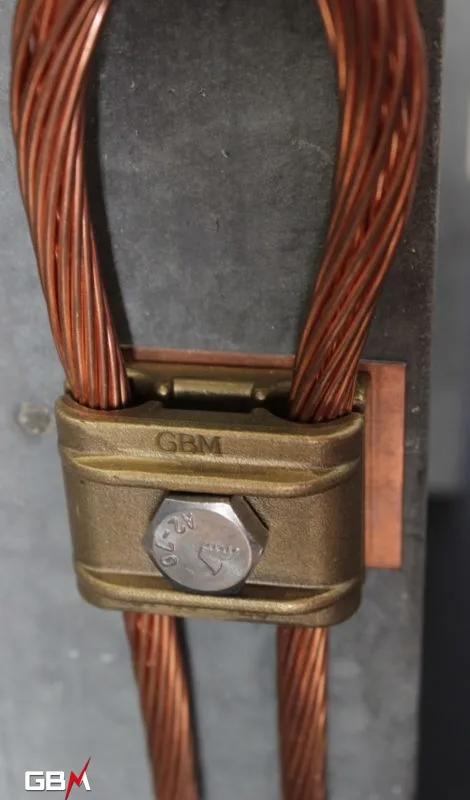

Earth shoe
Reference | Material | Conductor capacity (mm²) | Dimensions (mm) | Bolting size (mm) | Weight Kg (Pce) | Packaging (Pces) |
|---|---|---|---|---|---|---|
| ST50 | Brass | 2x 16 to 70 mm² | 49x36x9 | M10x40 Stainless steel | 0,138 | 5 |

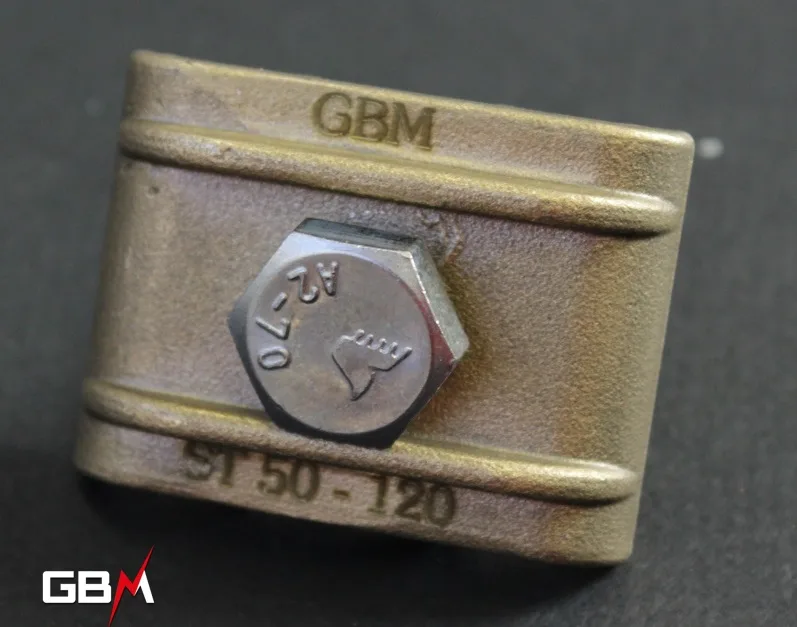

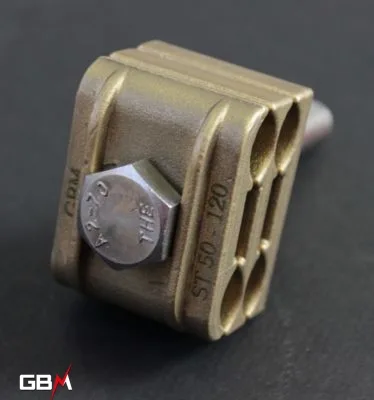

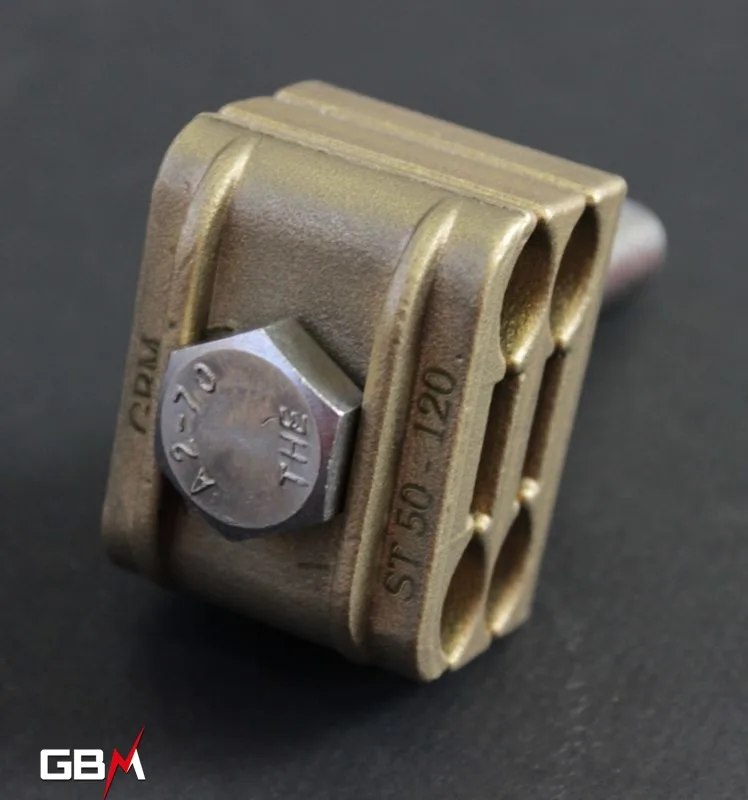

| ST50-120 | Brass | 2x 50 to 120 mm² | 49x36x18 | M12x60 Stainless steel | 0,267 | 5 |
| ST120-240 | Brass | 2x 120 to 240 mm² | 60x40x20 | M14x70 Stainless steel | 0,39 | 5 |
| ST185-300 | Brass | 2x 185 to 300 mm² | 65x40x20 | M14x80 Stainless steel | 0,37 | 5 |
| STD50-120 | Brass | 4x 50 to 120 mm² | 49x36x29 | M12x80 Stainless steel | 0,357 | 5 |
| STD120-240 | Brass | 4x 120 to 240 mm² | 65x40x31 | M14x90 Stainless steel | 0,532 | 5 |
| STD185-300 | Brass | 4x 185 to 300 mm² | 65x40x35 | M14x100 Stainless steel | 0,82 | 5 |
