Earth plate

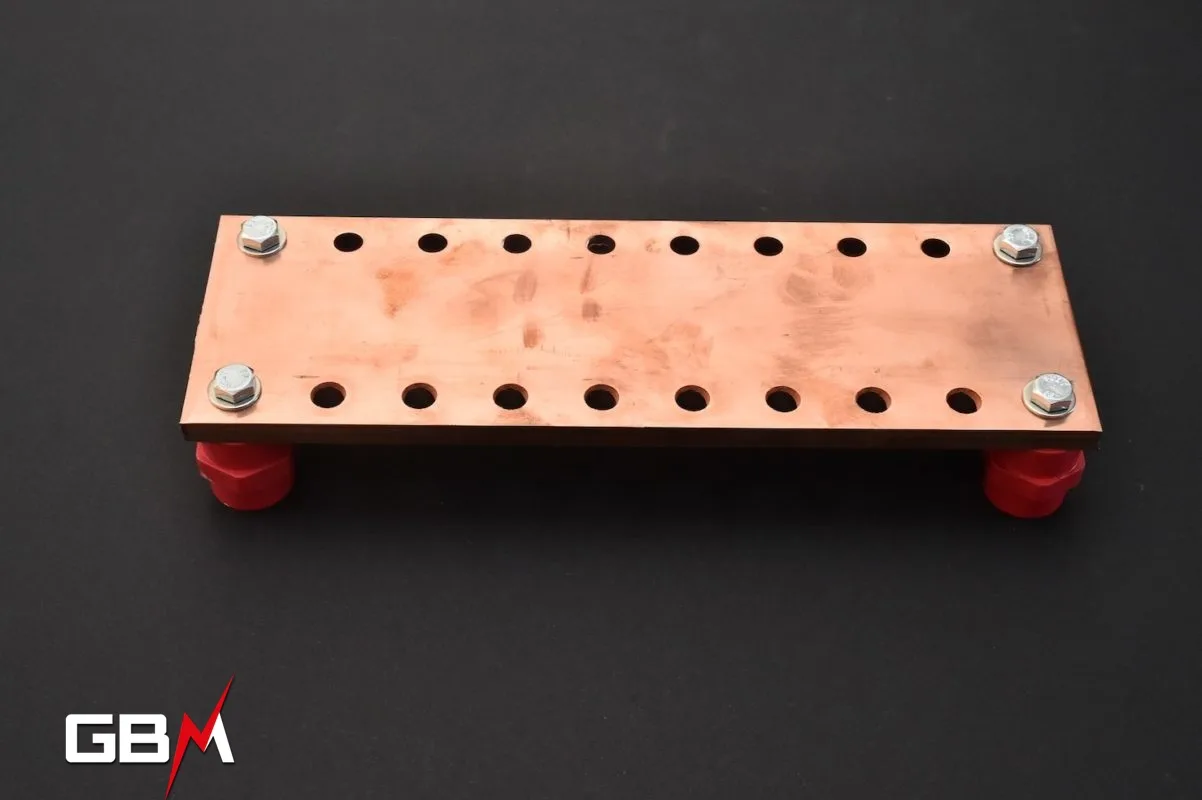

Earth plate on insulators

Copper earth plate 100X10, 10.5mm fixing holes.
The grounding plate is mounted on insulators fixed with stainless steel screws.


Commander plaque de terre en Cuivre
telecharger plaque de terre en Cuivre



bonding clip
Reference
Material
Length (mm)
Number of usefull connexions
Weight (Kg)
Packaging
PTISO20-10.5Copper300162,871
PTIISO22-10.5Stainless Steel300182,571

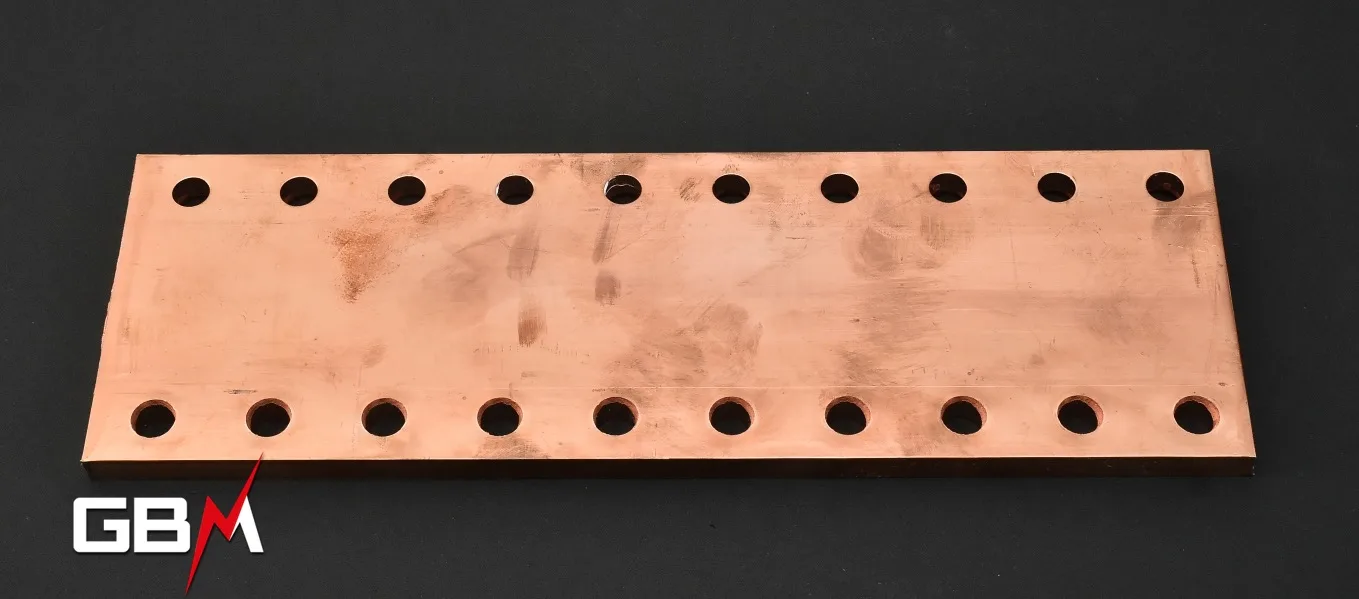

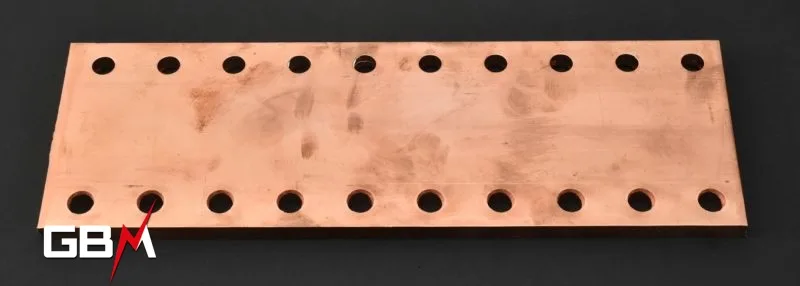

Bare earth plate

Copper ground plate 100X10, two rows of 10 fixing holes of 10.5mm diameter.


Commander produit mise à la terre france GBM francetelecharger plaque de terre en Cuivre



Perforated bus-bar with or without insulators.
Reference
Material
Length (mm)
Number of connexions
Weight (Kg)
Packaging
PT20-10,5Copper300202,531
PTI22-10,5Stainless Steel300222,231
