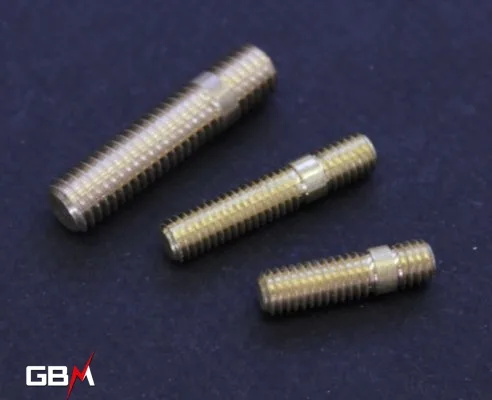

Brass Studs
Reference | Length (mm) | A (mm) | B (mm) | Weight (Kg/100) | Packaging (Pces) |
|---|---|---|---|---|---|
| GOUM6-22 | 22 | 14 | 6 | 0,3 | 100 |
| GOUM6-30 | 30 | 18 | 8 | 0,6 | 100 |
| GOUM6/M7-30 | 30 | 19 | 8 | 0,74 | 100 |
| GOUM8-35 | 35 | 24 | 8 | 1,15 | 100 |
* Other dimensions possible on request
