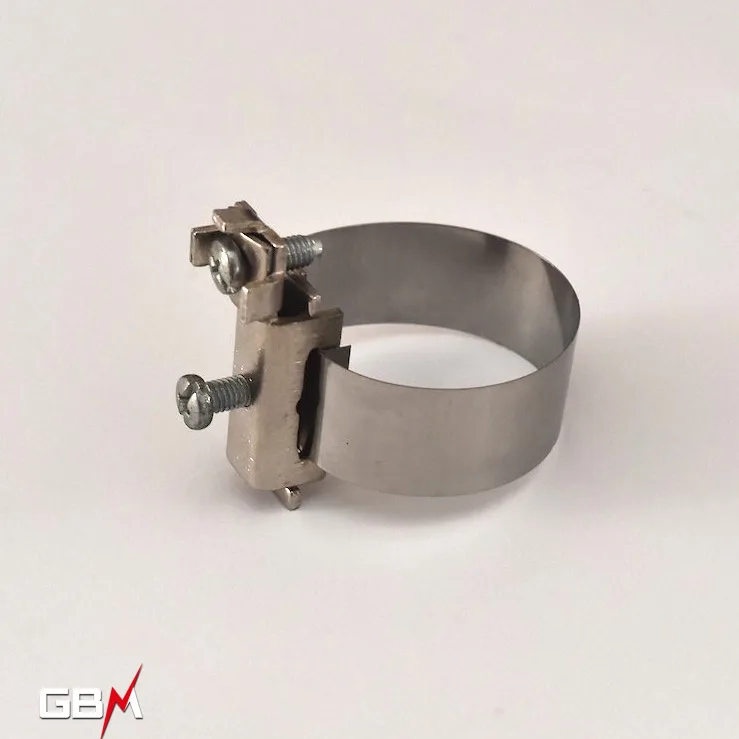

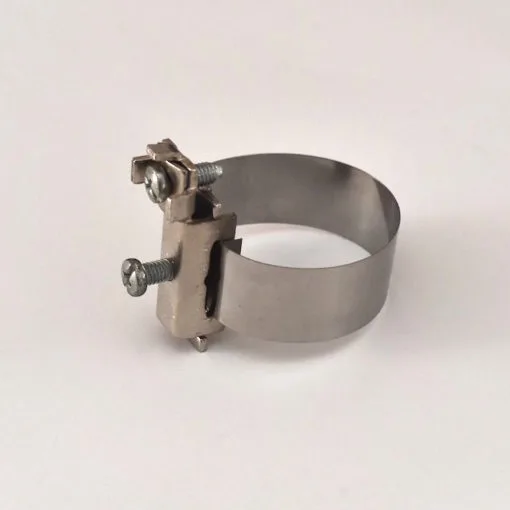

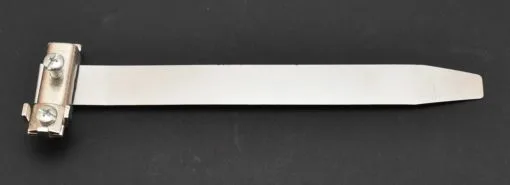

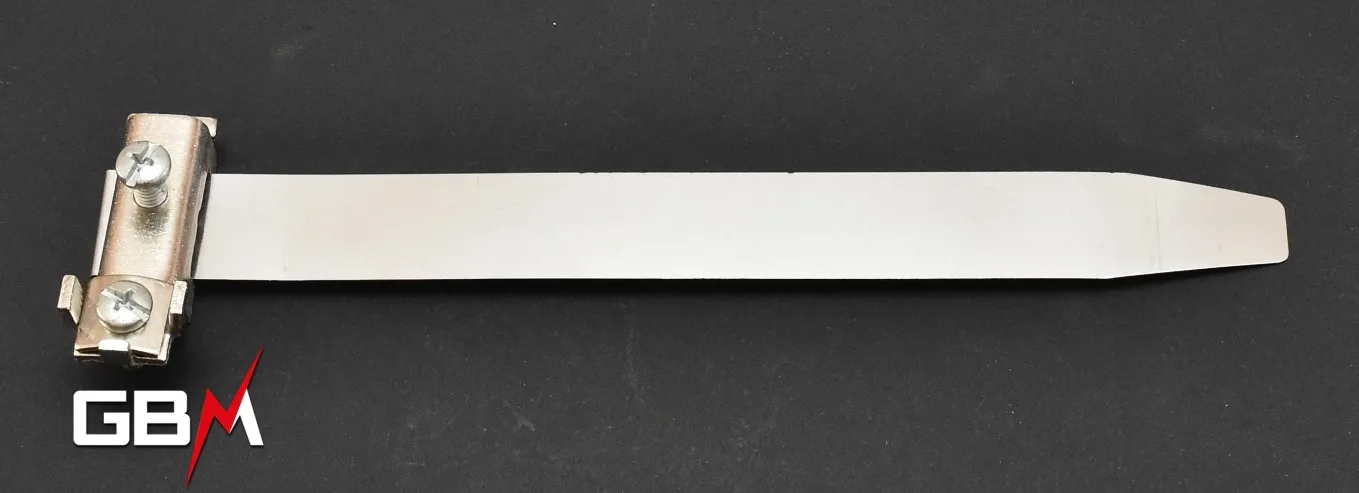

Earthing clamp for tube diameter 18 to 165mm

Product code: CLE18165 Category:
earthing collar for pipes
Earthing collar for pipes.
earthing collar for pipes
Earthing collar for pipes.

Earthing clamp for tube diameter 18 to 165mm

2,75 € w/o tax

27,50 € w/o tax for 10 pieces

Earthing clamp for tube diameter 18 to 165mm maximum.

In stock

Product code: CLE18165 Category:

The equipotential collar makes it possible to connect any type of piping to an earth conductor or to an earth braid.

  • Mild steel attachment body with electro-galvanized screws
  • 304 stainless steel tape
  • Admissible section 2.5 to 16mm²
  • Clamping capacity on tube 18-165mm
  • Band length 550mm
  • Band width 22mm
  • Weight 0,106 Kg/Piece
  • Packaging box of 10 pieces
  • Recommended for indoor use only
Weight 0,106 kg
