Insulator Column in polyester / fiberglass height 40mm hexagon 20mm Thread M8 RAL 3002

Product code: ISOCO840 Category:
New
Spacing columns in polyester
Spacing columns in polyester
Spacing columns in polyester
halogenfree rohs compliant GBM France
Spacing columns in polyester
Spacing columns in polyester
Spacing columns in polyester
Spacing columns in polyester
halogenfree rohs compliant GBM France
Spacing columns in polyester

Insulator Column in polyester / fiberglass height 40mm hexagon 20mm Thread M8 RAL 3002

2,75 € w/o tax

27.50 € w/o tax for 10 pieces

Polyester fiberglass insulator Female/Female Height 40mm, Hexagon 20mm Thread M8 RAL 3002.

In stock

Product code: ISOCO840 Category:

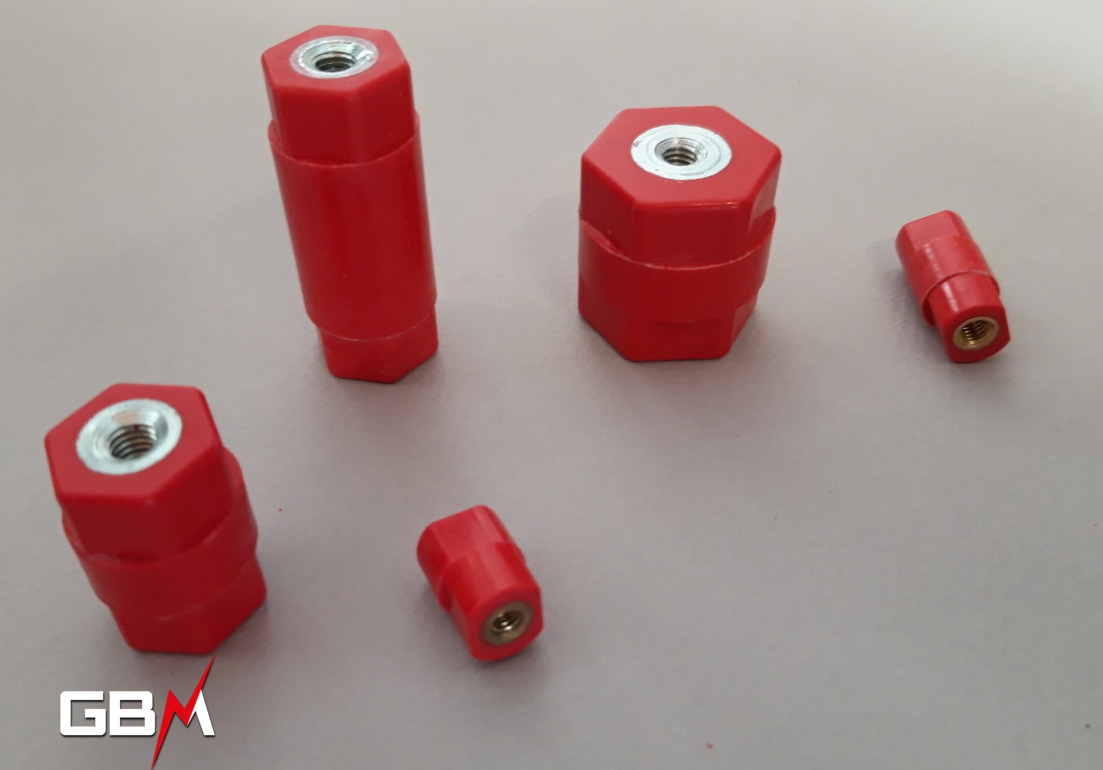

Column insulators are designed to electrically and mechanically insulate copper bars or active conductors. They are used in electrical panels for busbars but also for transformer stations.

  • Fiberglass/Polyester
  • RAL color 3002
  • Silicone free
  • Self-extinguishing according to UL 94-V0
  • Operating temperature: -40°C to 130°C
  • Water absorption according to (ASTM D570)< 0.3%
  • Female/female
  • Thread M8
  • Dimensions (H) 40mm
  • Hexagon C 18mm
  • Diameter D 20mm
  • Weight 0,0.304 Kg/Piece
  • Packaging bag of 10 pieces



Weight 0,03 kg
