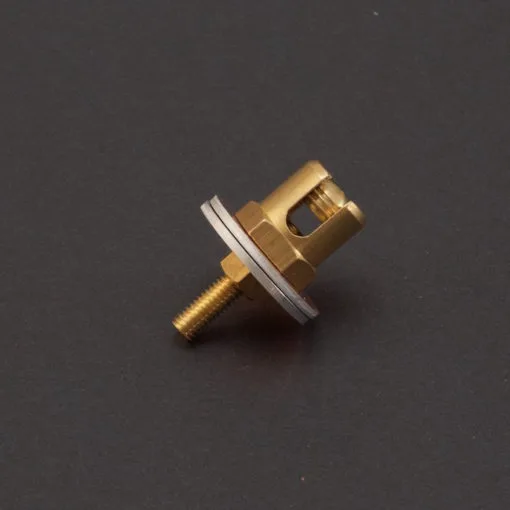

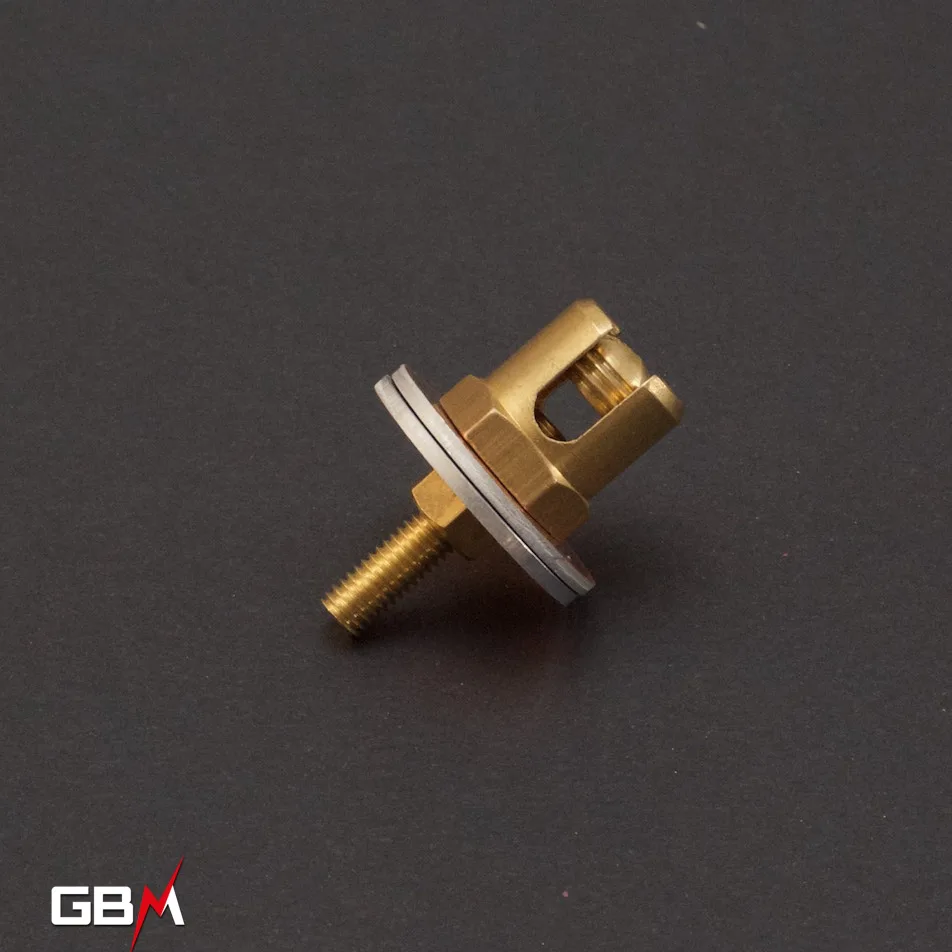

Complete brass wire clamp with stud and bimetallic washers for 25mm² cable

Product code: BL25-6/2RBIGOU Category:
COMPLETE WIRE CLAMP WITH STUD
Earthing and mechanical connectors
Earthing and mechanical connectors
Earthing and mechanical connectors
COMPLETE WIRE CLAMP WITH STUD
Earthing and mechanical connectors
Earthing and mechanical connectors
Earthing and mechanical connectors

Complete brass wire clamp with stud and bimetallic washers for 25mm² cable

2,95 € w/o tax

147,50 € w/o tax for 50 pieces

Complete brass wire clamp with stud and bimetal washers for cable 25mm².

In stock

Product code: BL25-6/2RBIGOU Category:

The complete wire clamp with stud and bimetallic washers allows the bare copper to be fixed on a metal frame or on a cable tray, which ensures the earthing of the installation, the bimetallic washers limit the galvanic couple.

  • Conductor capacity 3 to 6mm
  • Dimensions Stud M6x22mm
  • Greenhouse material Brass wires
  • Material of stud and nut brass
  • 2 Copper / Aluminum bimetallic washers
  • Delivered assembled
  • Weight 0,0395 Kg/piece
  • Packaging box of 50 pieces



Weight 0,04 kg
