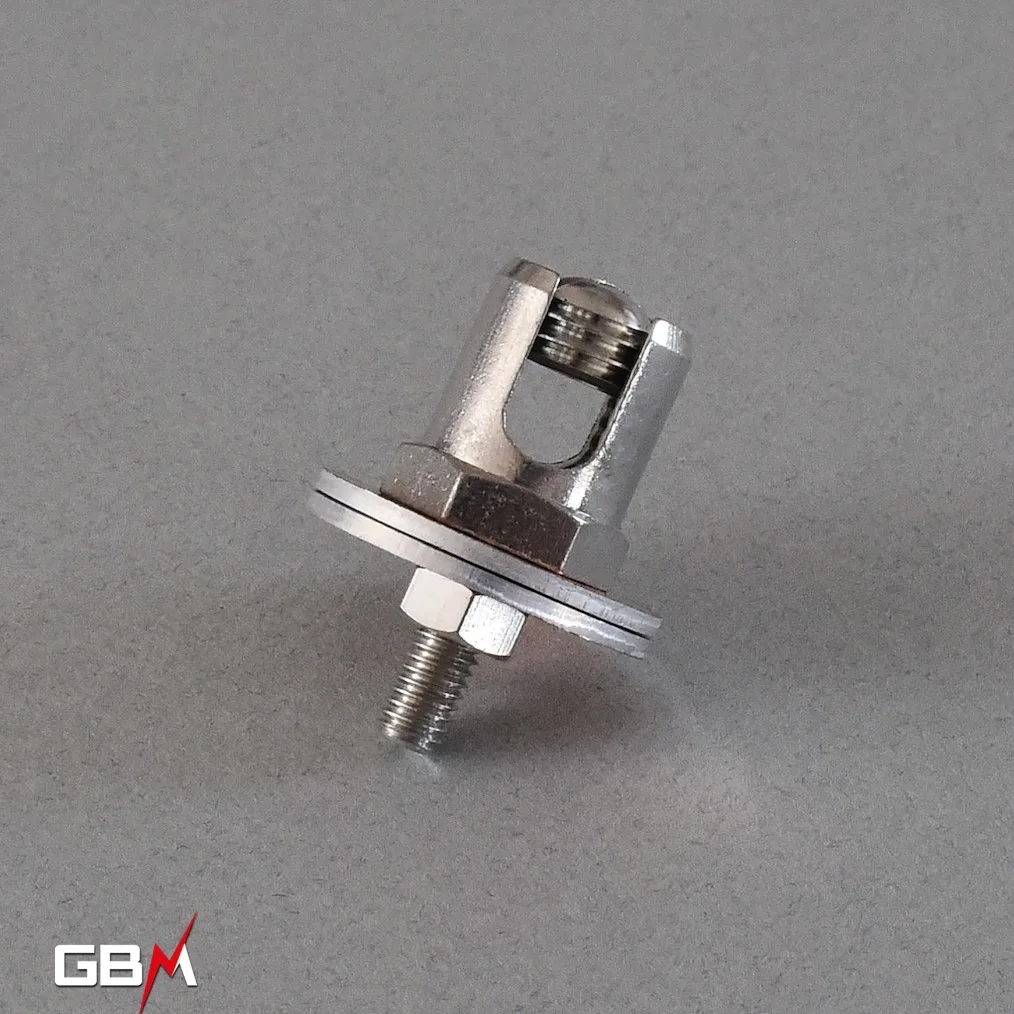

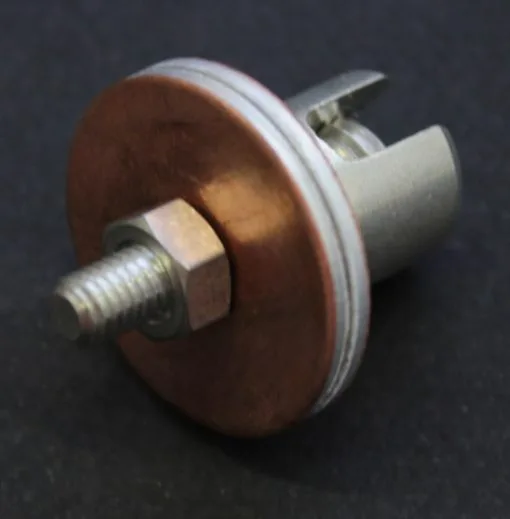

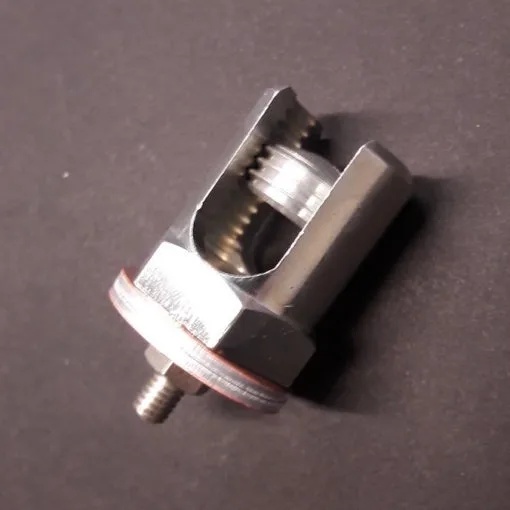

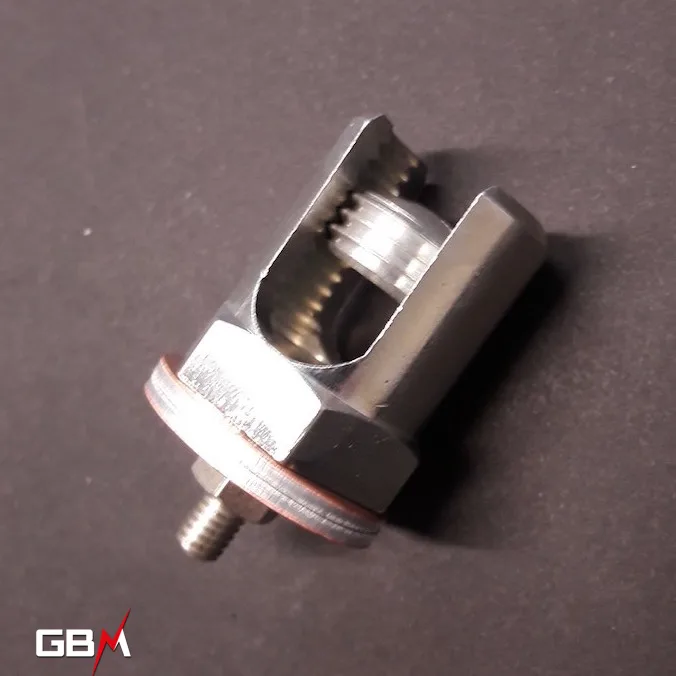

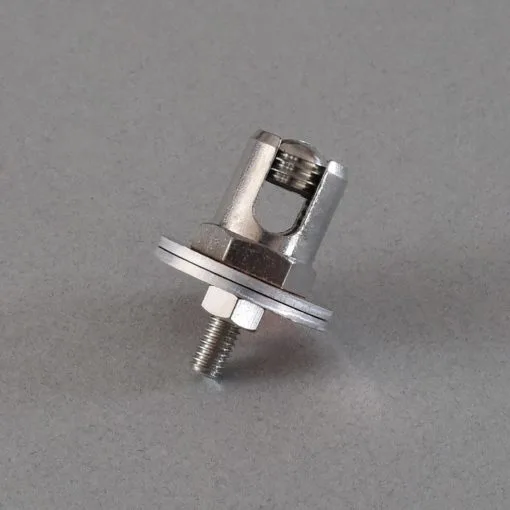

The complete wire clamp with stud and bimetallic washers allows the bare copper to be fixed on a metal frame or on a cable tray, which ensures the earthing of the installation, the bimetallic washers limit the galvanic couple. Tinning provides better resistance to corrosion.

• Conductor capacity 3 to 6mm
• Dimensions Stud M6x22mm
• Greenhouse material Tinned brass wire
• Material of the stud and nut in tinned brass
• 3-5 µm tinning
• 2 Copper / Aluminum bimetallic washers
• Delivered assembled
• Weight 0,0395 Kg/piece
• Packaging box of 50 pieces
