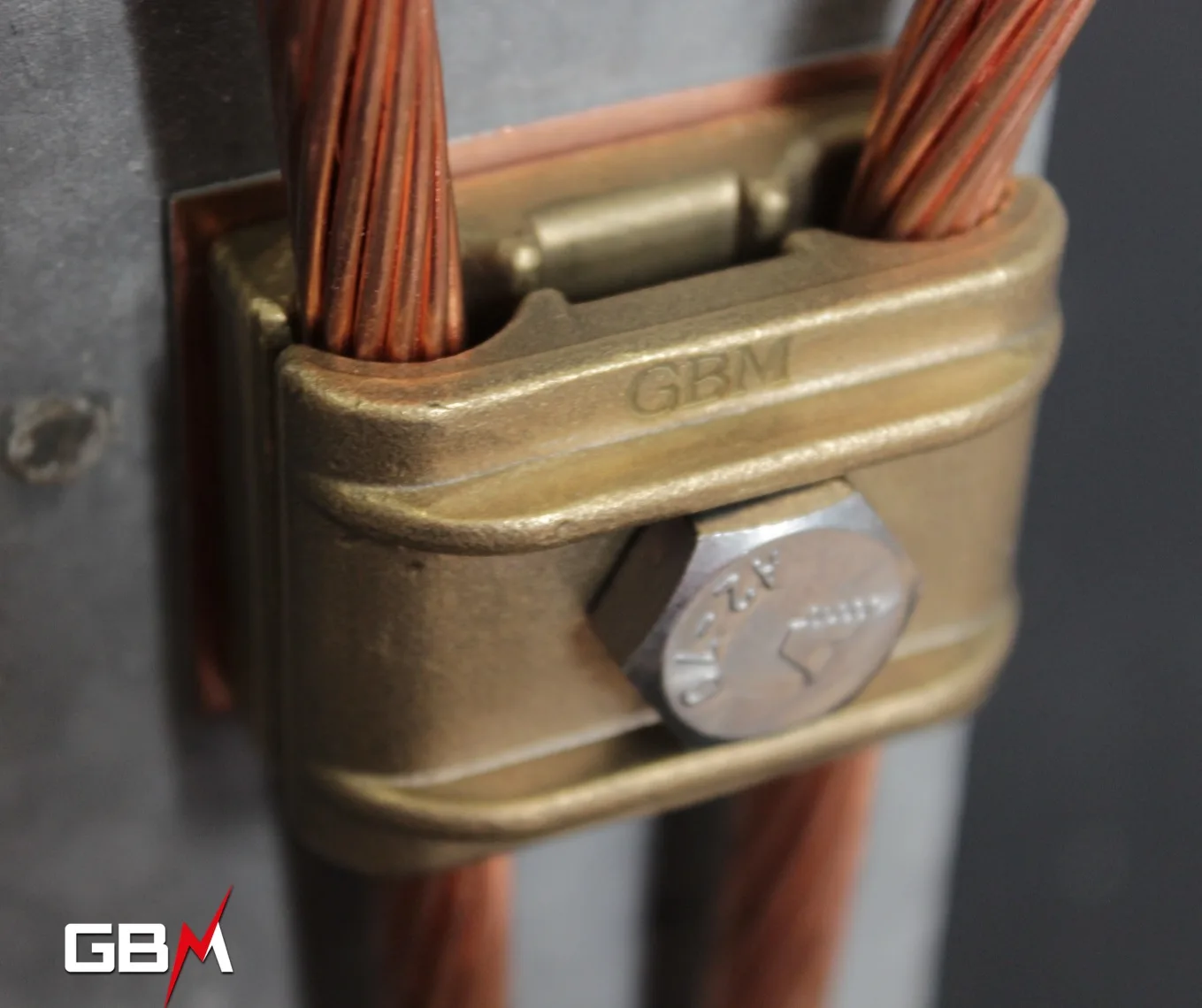

Single earth shoe for cables from 50 to 120mm², stainless steel screws

Product code: ST50-120 Category:
Earth clamps

Single earth shoe for cables from 50 to 120mm², stainless steel screws

10,90 € w/o tax

54.50 € w/o tax for 5 pieces

Single earth shoe for cabfor 50 to 120mm², stainfors steel screws.

In stock

Product code: ST50-120 Category:

Earth shoes are used to create earth loops on source substations at RTE and ENEDIS, if the earth shoe is in contact with a metal frame, we recommend the use of a bimetal plate and washer in order to avoid galvanic corrosion problems.

  • Admissible section from 50 to 120mm²
  • Brass shoe material
  • Dimensions LxWxH 49X36X18mm
  • Stainless steel screws A2 M12X60
  • Delivered assembled
  • Weight 0,267 Kg/piece
  • Packaging box of 5 pieces





Weight 0,2685 kg

You may also like…

Bimetallic waschers (Cu-Al)

Bimetallic washer 13mm hole

0,55 € w/o tax
COMPLETE WIRE CLAMP WITH STUD

Complete brass wire clamp with stud and bimetallic washers for 95mm² cable

4,60 € w/o tax
copper conductors

Bare copper 50mm² section – 50m coil

9,50 € w/o tax

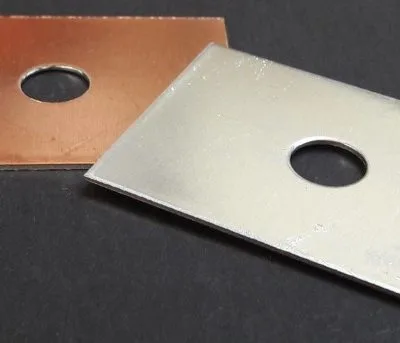

Bimetallic plates (Cu-Al)
