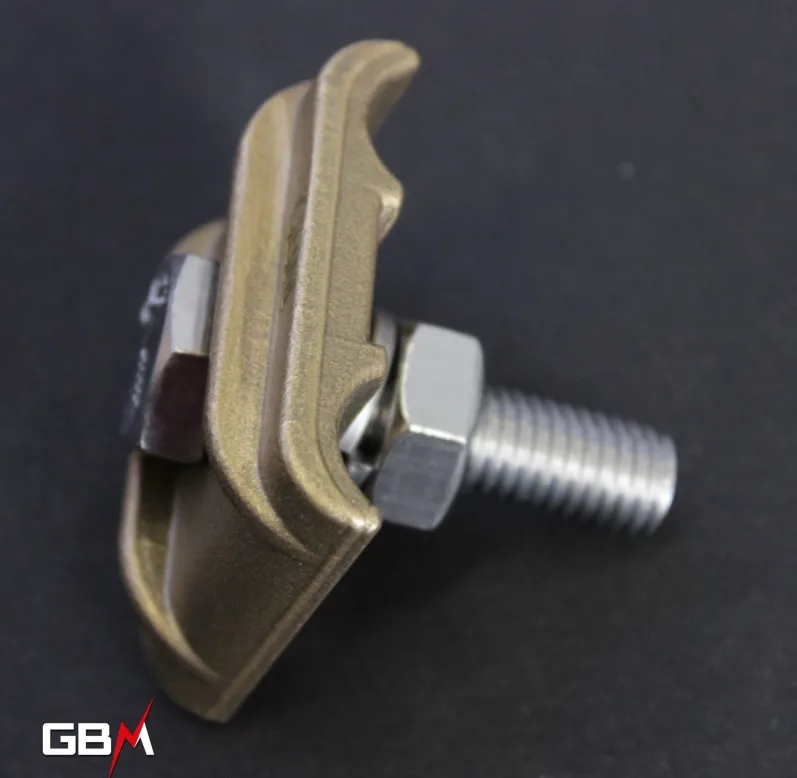

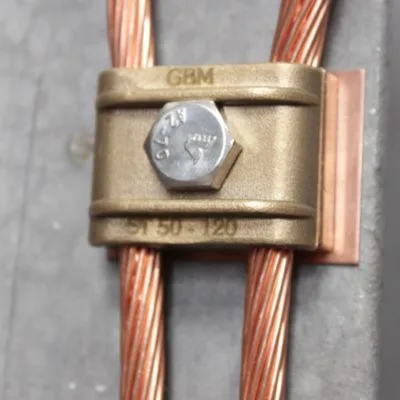

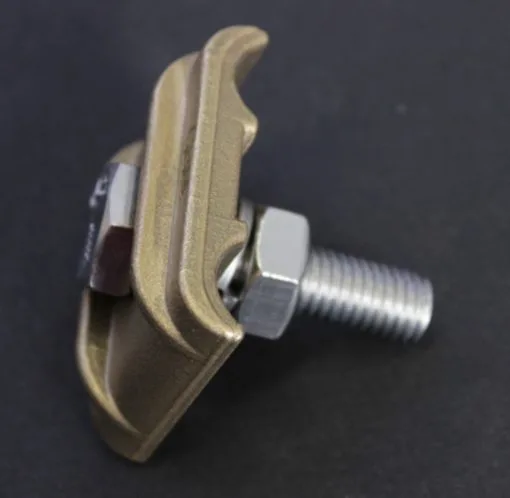

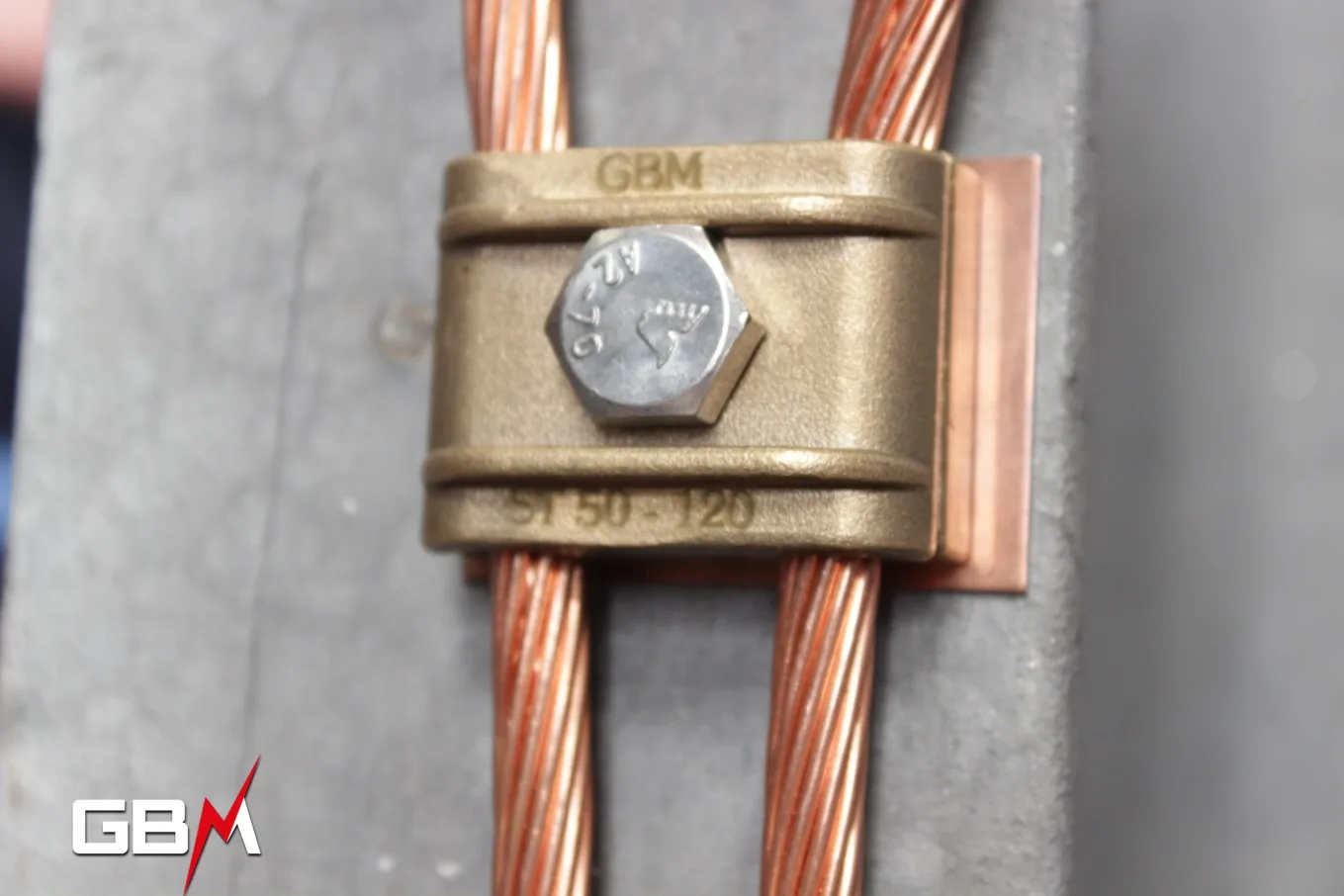

Earth shoes are used to create earth loops on source substations at RTE and ENEDIS, if the earth shoe is in contact with a metal frame, we recommend the use of a bimetal plate and washer in order to avoid galvanic corrosion problems.

• Admissible section from 16 to 70mm²
• Brass shoe material
• Dimensions LxWxH 49X36X9mm
• Stainless steel screws A2 M10X40
• Delivered assembled
• Weight 0,138 Kg/piece
• Packaging box of 5 pieces
