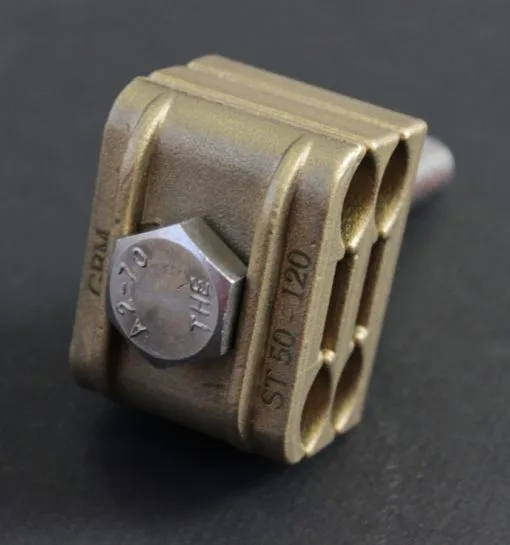

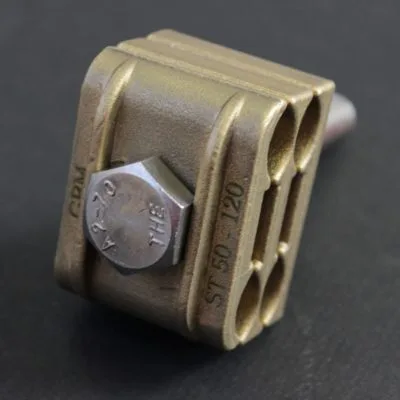

Double earth shoes are used to create earth loops on source substations at RTE and ENEDIS, if the double earth shoe is in contact with a metal frame, we recommend the use of a bimetallic plate and washer in order to avoid galvanic corrosion problems.

• Admissible section from 50 to 120mm²
• Brass shoe material
• Dimensions LxWxH 49X36X29mm
• Stainless steel screws A2 M12X80
• Delivered assembled
• Weight 0,357 Kg/piece
• Packaging box of 5 pieces
