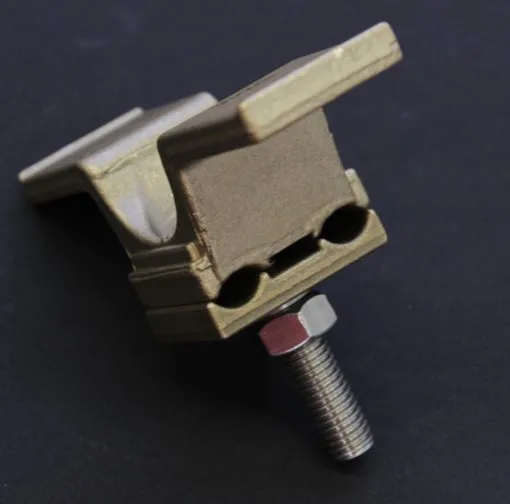

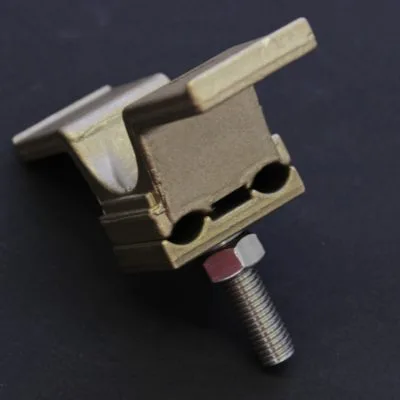

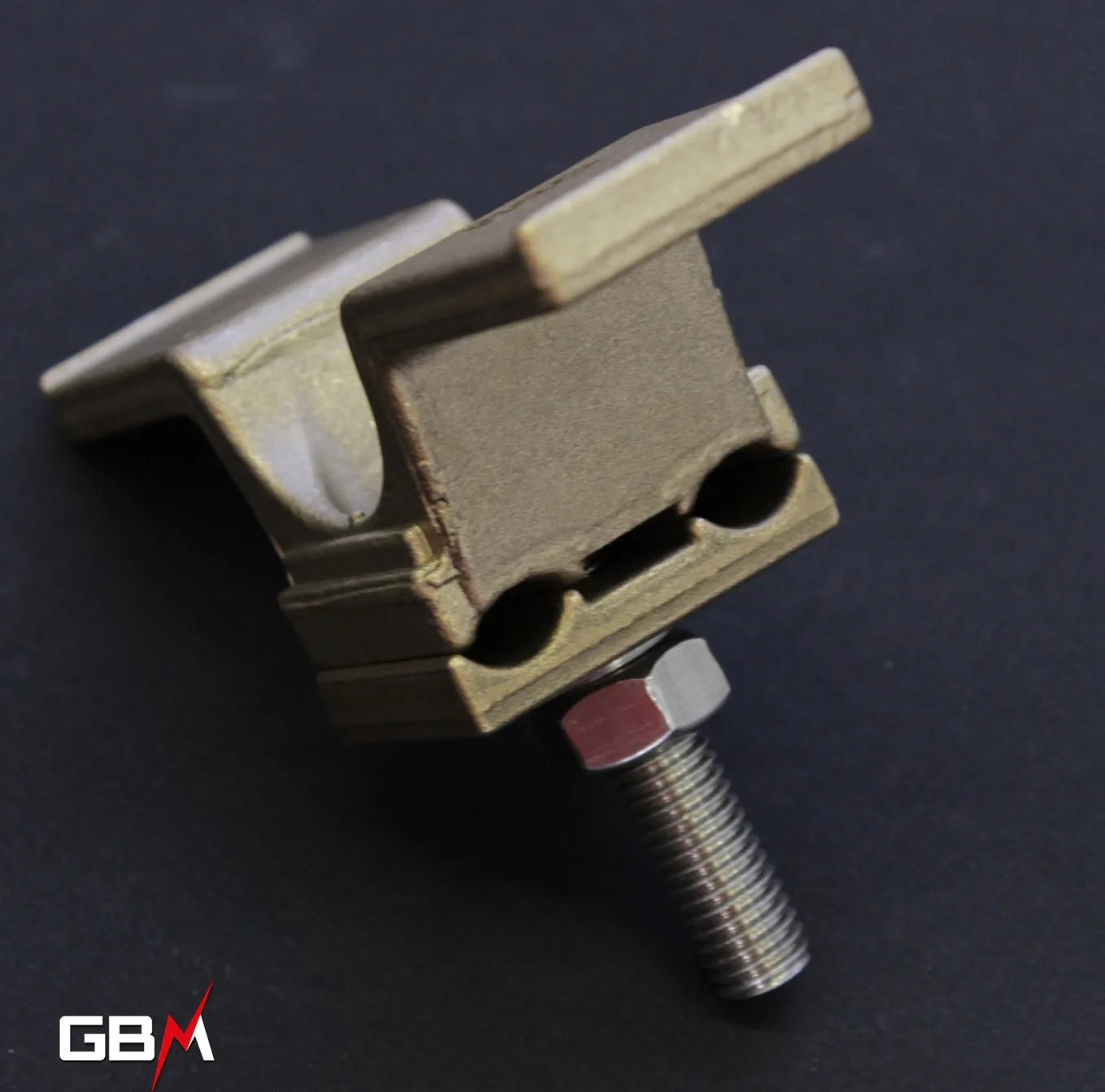

The finned earth shoes are used to create earth loops on source substations at RTE and ENEDIS, the fin allows the connection of earthing clamps. If the earth shoe is in contact with a metal frame, we recommend the use of a bimetallic plate and washer to avoid galvanic corrosion problems.

• Admissible section from 50 to 120mm²
• Brass wing shoe material
• Dimensions LxWxH 130X49X46 mm
• Stainless steel screws A2 M12X60
• Delivered assembled
• Weight 0,60 Kg/piece
• Packaging box of 5 pieces
