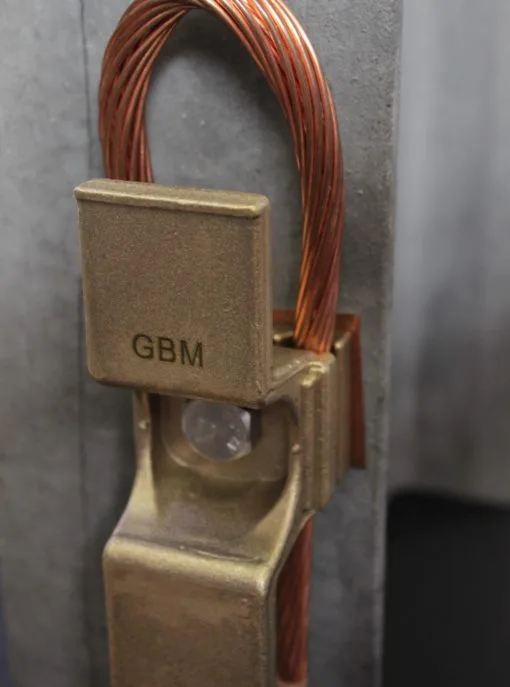

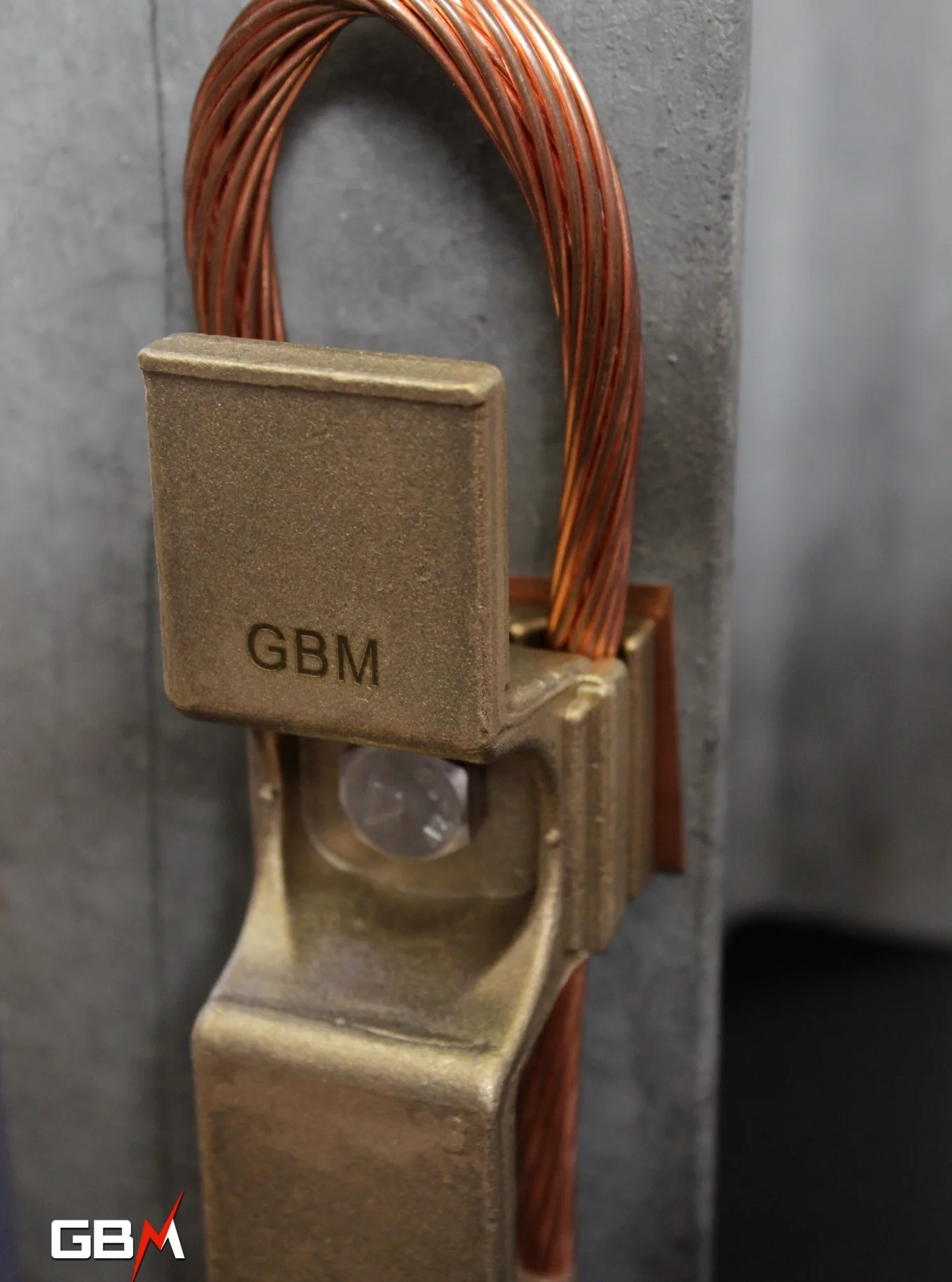

The finned earth shoes are used to create earth loops on source substations at RTE and ENEDIS, the fin allows the connection of earthing clamps. If the earth shoe is in contact with a metal frame, we recommend the use of a bimetallic plate and washer to avoid galvanic corrosion problems.

• Admissible section from 120 to 240mm²
• Brass wing shoe material
• Dimensions LxWxH 135X61X45 mm
• Stainless steel screws A2 M14X70
• Delivered assembled
• Weight 0,784 Kg/piece
• Packaging box of 5 pieces
