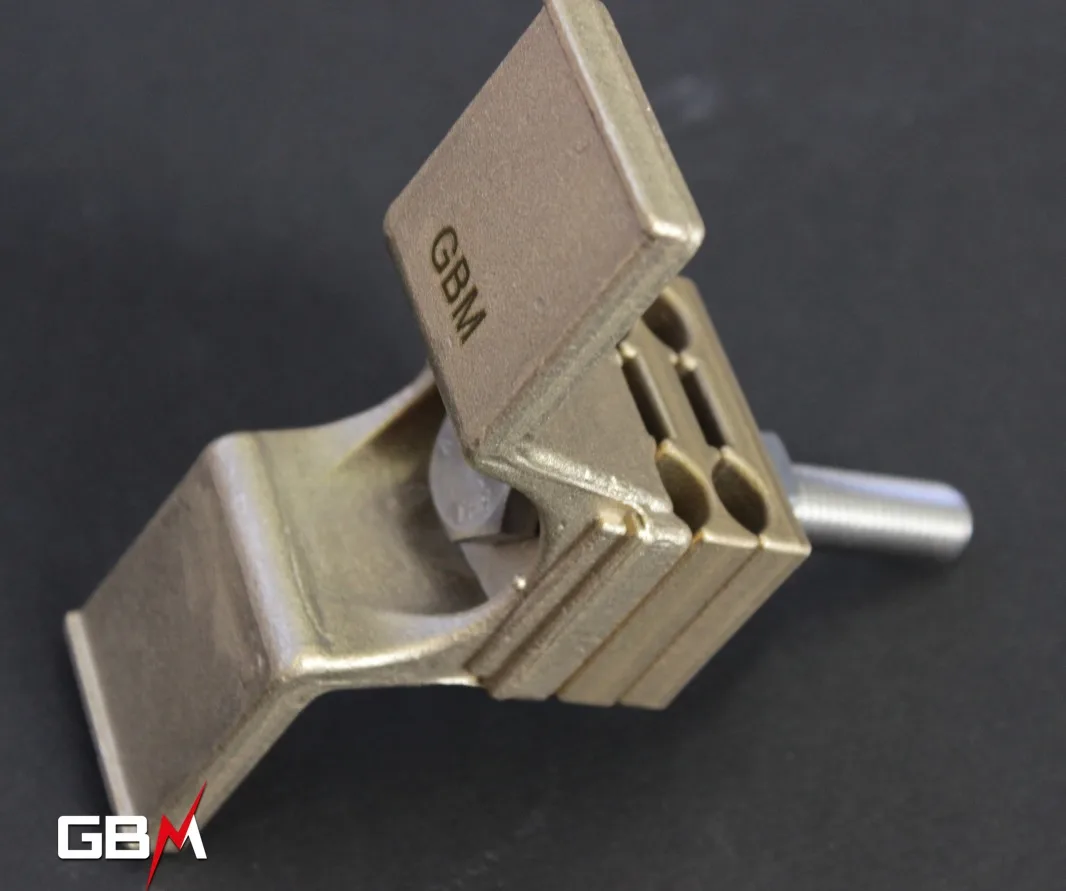

Double fin earth shoes are used to create earth loops on source substations at RTE and ENEDIS, the fin allows the connection of earthing clamps. If the earth shoe is in contact with a metal frame, we recommend the use of a bimetallic plate and washer to avoid galvanic corrosion problems.

• Admissible section from 185 to 300mm²
• Material of the brass double winged shoe
• Dimensions LxWxH 135x65x62 mm
• Stainless steel screws A2 M14X100
• Delivered assembled
• Weight 0,983 Kg/piece
• Packaging box of 5 pieces
