100x10mm copper earth plate 10.5mm fixing holes, mounted on 4 insulators 35mm high

Product code: PTISO20-10.5 Category:
bonding clip
100x10mm copper earth plate, 10.5mm fixing holes, the earth plate is mounted on insulators fixed by stainless steel screw
bonding clip
100x10mm copper earth plate, 10.5mm fixing holes, the earth plate is mounted on insulators fixed by stainless steel screw

100x10mm copper earth plate 10.5mm fixing holes, mounted on 4 insulators 35mm high

99,40 € w/o tax

99,40 € w/o tax per piece

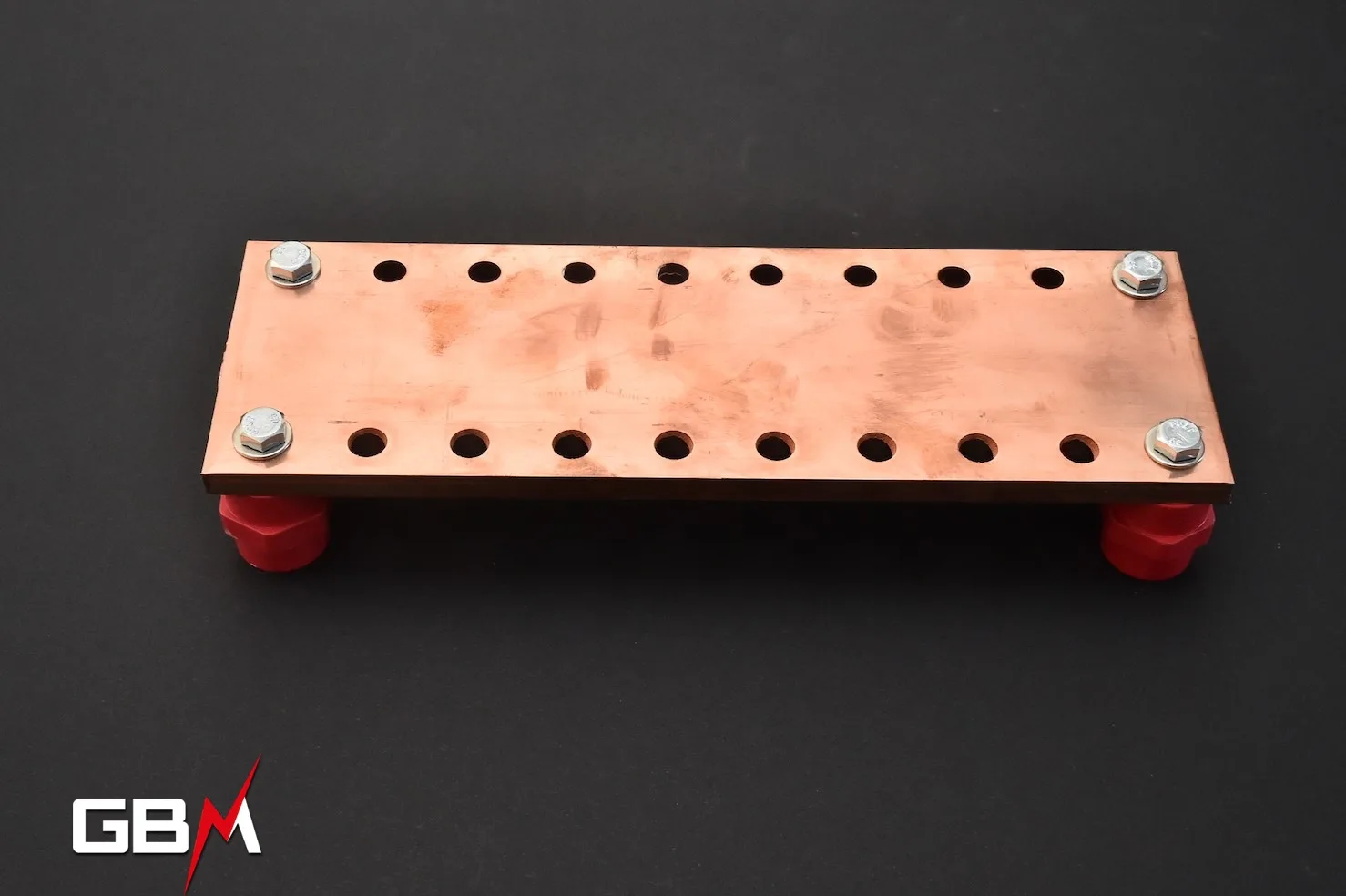

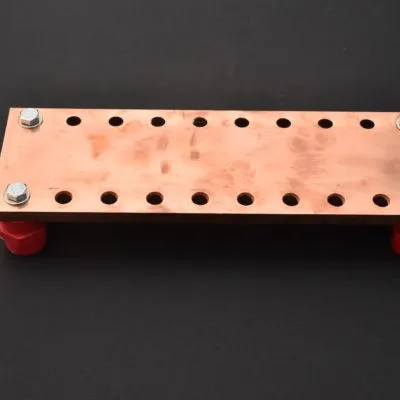

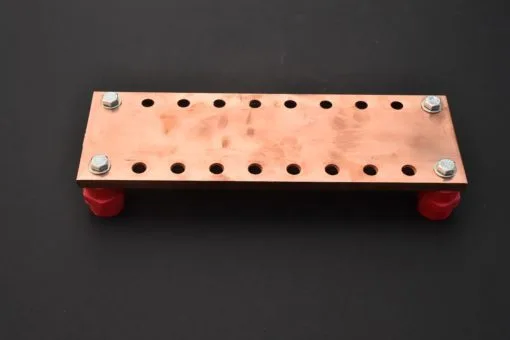

Grounding copper plate 100x10mm hole size fixation 10,5 mm, mounted on 4 polyester fiberglass insulators height 35mm.

In stock

Product code: PTISO20-10.5 Category:

100x10mm copper earth plate, 10.5mm fixing holes, the earth plate is mounted on insulators fixed by stainless steel screws.

  • Copper plate Cu-ETP (CW004A) 100x10mm
  • Dimensions LxWxH 300x100x46mm
  • Number of connections 16 useful holes
  • Ø10,5mm fixing holes for M10 screws
  • 35mm high fiberglass / polyester insulators
  • Stainless steel bolts for fixing insulators
  • Weight 2,87 Kg/piece
  • Unit packaging



Weight 2,87 kg

You may also like…

copper busbars

Perforated copper bar 1750mm length 25x5mm section 10,5mm holes

45 € w/o tax
BRASS NUTS AND BOLTS

Hexagonal head screw M8x25mm in Brass

0,51 € w/o tax
Tinned copper tubular lug according

Tubular copper lug according to NFC20-130 – 16 mm², 10

0,38 € w/o tax

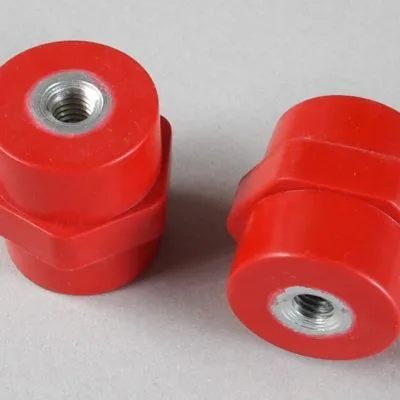

Low voltage Insulators M8
