Copper earth plate 100x10mm section, 10.5mm fixing holes

Product code: PT20-10.5 Category:
Perforated bus-bar with or without insulators.
Perforated bus-bar with or without insulators.
Perforated bus-bar with or without insulators.
Perforated bus-bar with or without insulators.

Copper earth plate 100x10mm section, 10.5mm fixing holes

86,60 € w/o tax

86,60 € w/o tax per piece

Grounding copper plate section 100X10mm, hole size fixing 10,5mm.

In stock

Product code: PT20-10.5 Category:

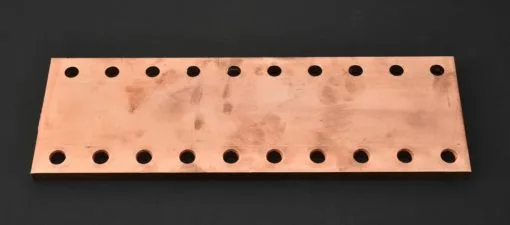

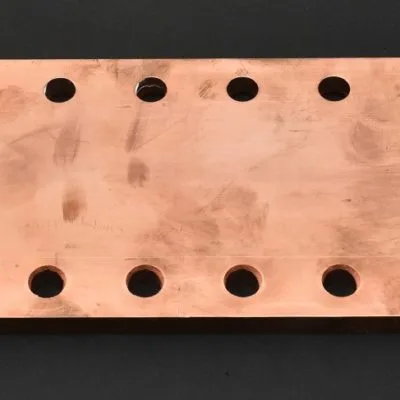

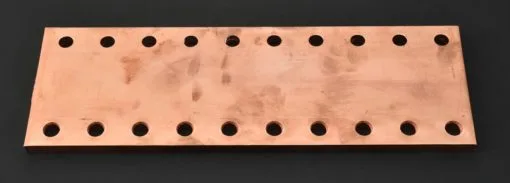

Copper earth plate 100x10mm section, 10.5mm fixing holes.

  • Copper plate Cu-ETP (CW004A) 100x10mm
  • Dimensions LxWxH 300x100x10mm
  • Number of connections 20 useful holes
  • Ø10,5mm fixing holes for M10 screws
  • Weight 2,53 Kg/piece
  • Unit packaging



Weight 2,53 kg
