50x5mm copper cut-off strip, 105mm length
50x5mm copper cut-off strip, 105mm length
30,80 € w/o tax
30,80 € w/o tax per piece

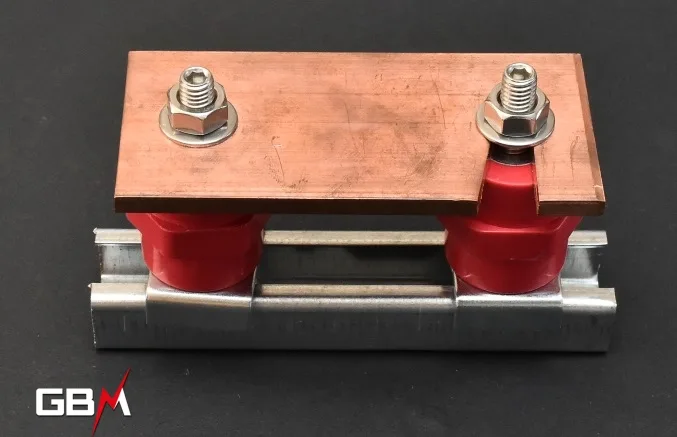

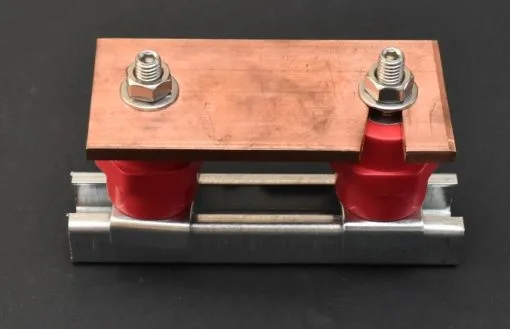

Section copper cut-off strip 50x5mm, Length 105mm, mounted on 2 insulators with galvanized steel fixing rail provided with oblong hofor.
In stock
The high cut-off strip is generally placed near the distribution panel, it is the connection terminal between the underground part and the surface part of the earthing installation. The opening of the earth bar allows the earth electrode resistance to be measured.
- Admissible conductors 16 to 70mm²
- Length 105mm
- Cu-ETP copper breaking (CW004A)
- 35mm high fiberglass / polyester insulators
- Stainless steel bolts for fixing insulators
- Weight 0,6 Kg/piece
- Unit packaging
| Weight | 0,545 kg |
|---|
