50x5mm copper equipotentiality bar, 10 useful holes for M8 screws

Product code: BE10 Categories: ,
Earthings bars
Copper equipotentiality bar 50x5mm
Copper equipotentiality bar 50x5mm
Earthings bars
Copper equipotentiality bar 50x5mm
Copper equipotentiality bar 50x5mm

50x5mm copper equipotentiality bar, 10 useful holes for M8 screws

51 € w/o tax

51 € w / o tax per piece

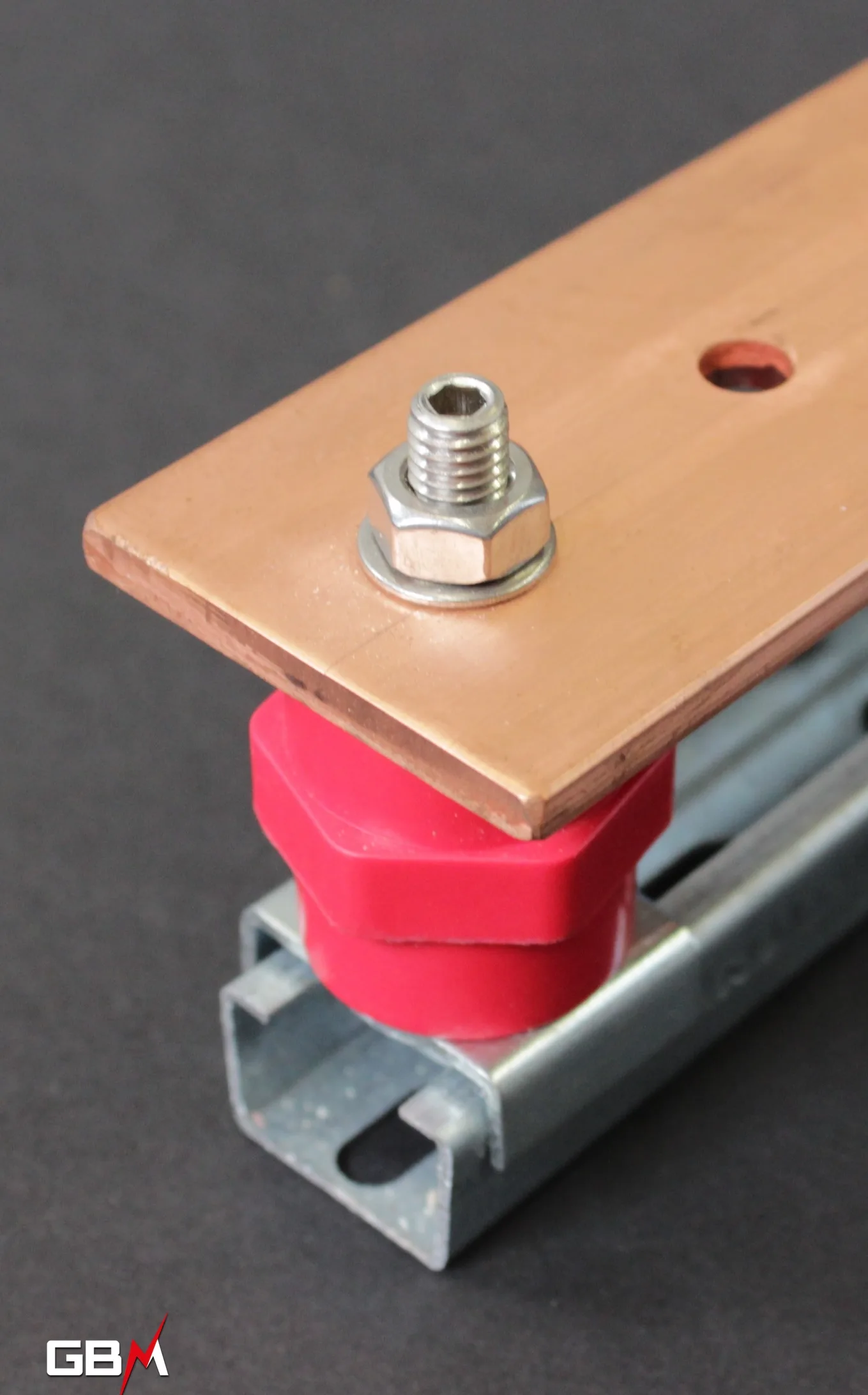

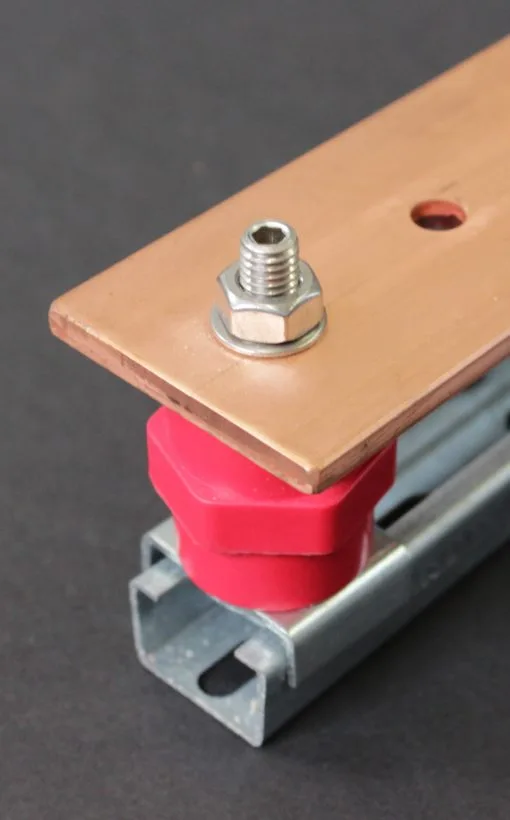

Copper equipotentiality bar 50x5mm, Length 420mm, 10 useful hofor diameter 8,5mm, mounted on 2 polyester fiberglass insulators height 35mm assembled to a galvanized steel rail with oblong hofor. Stainfors steel bolts.

In stock

Product code: BE10 Categories: ,

The equipotentiality bar is used to bring together the different earth circuits of an installation on the same support, the connections can be fixed by screws to block the connection.

  • Copper bar Cu-ETP (CW004A) 50x5mm
  • 420mm length
  • 10 useful holes
  • Ø8.5mm fixing holes for M8 screws
  • 35mm high fiberglass / polyester insulators
  • Stainless steel bolts for fixing insulators
  • Galvanized steel fixing rail with oblong holes
  • Weight 1.75 Kg / piece
  • Unit packaging





Weight 1,41 kg
