50x5mm copper equipotentiality bar, 6 useful holes for M8 screws

Product code: BE6 Categories: ,
Earthings bars
Copper equipotentiality bar 50x5mm
Earthings bars
Copper equipotentiality bar 50x5mm

50x5mm copper equipotentiality bar, 6 useful holes for M8 screws

42 € w/o tax

42 € w/o tax per piece

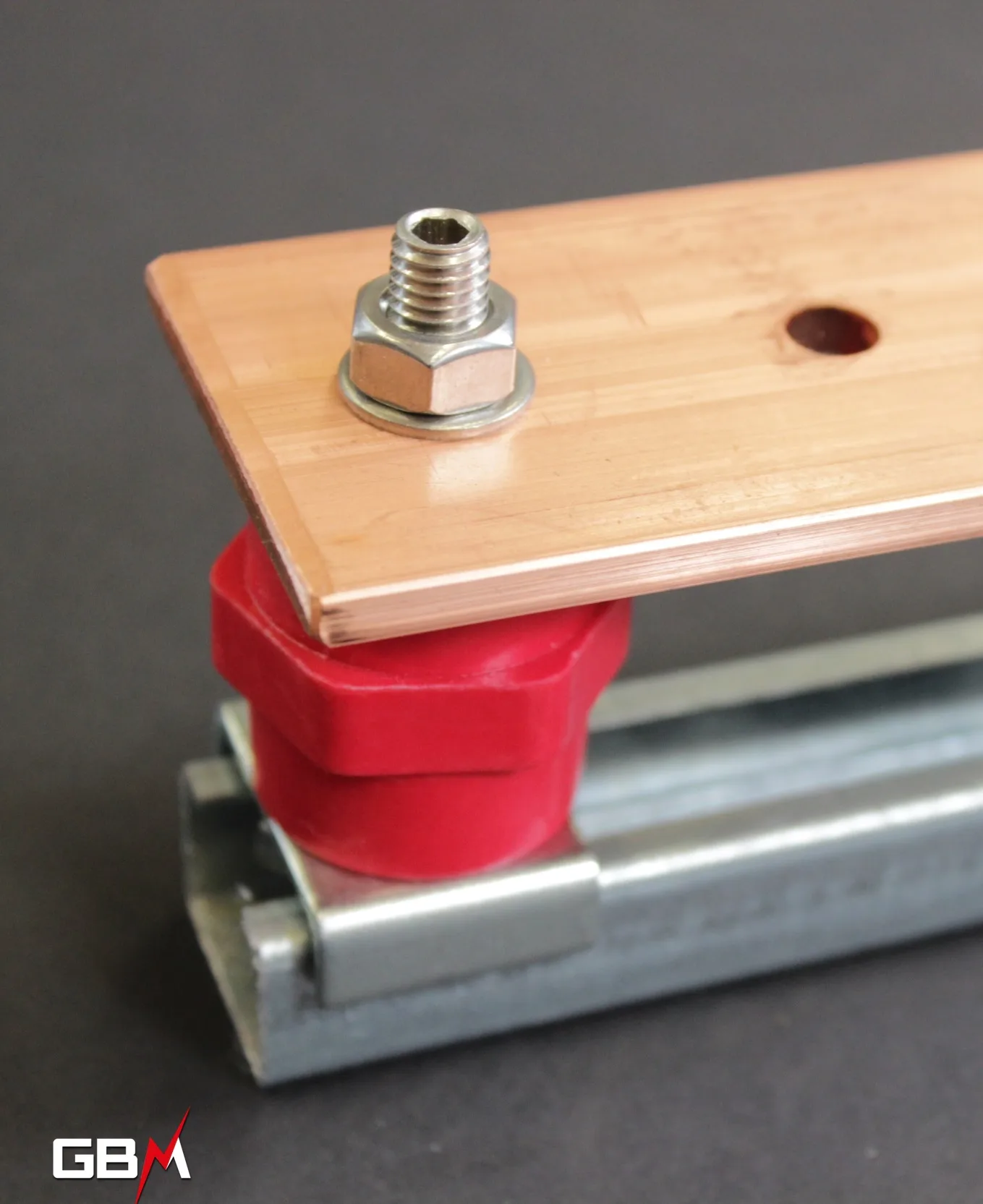

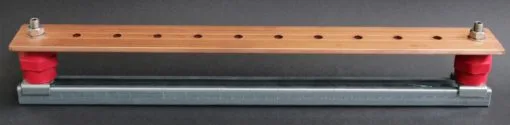

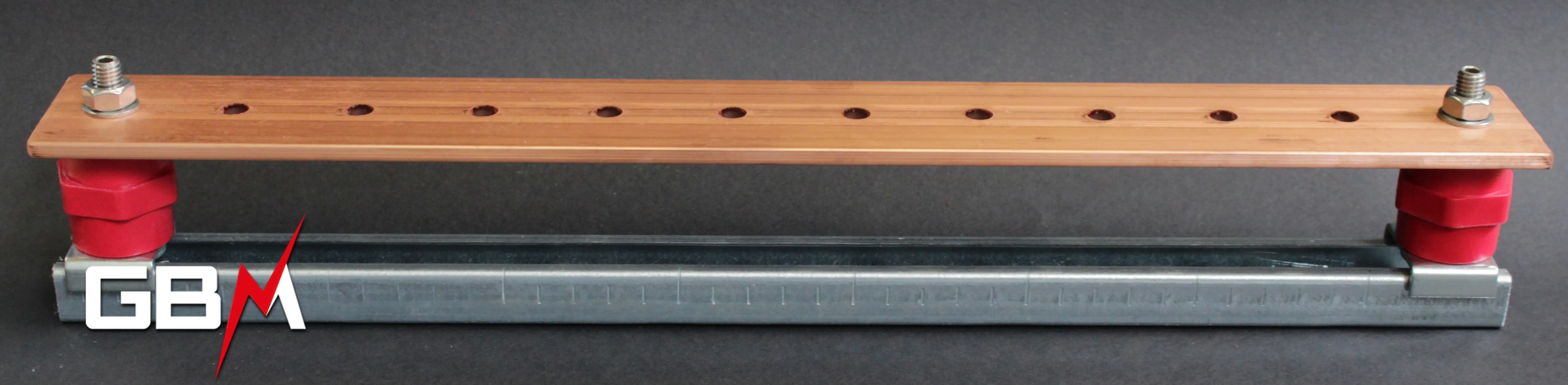

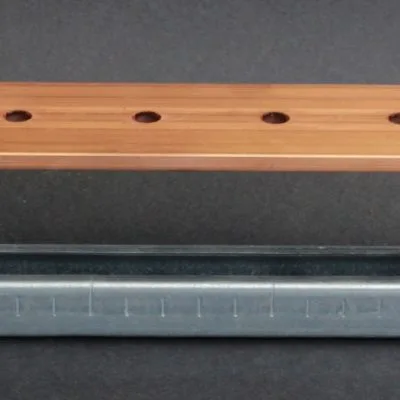

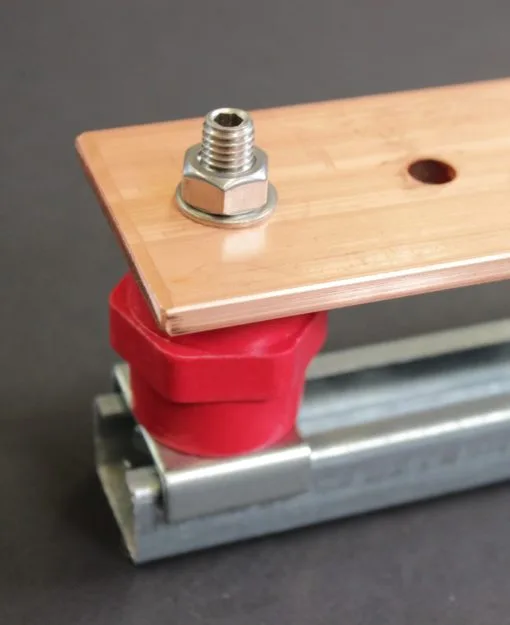

Copper equipotentiality bar 50x5mm, Length 280mm, 6 useful hofor diameter 8,5mm, mounted on 2 polyester fiberglass insulators height 35mm assembled to a galvanized steel rail with oblong hofor. Stainfors steel bolts.

In stock

Product code: BE6 Categories: ,

The equipotentiality bar is used to bring together the different earth circuits of an installation on the same support, the connections can be fixed by screws to block the connection.

  • Copper bar Cu-ETP (CW004A) 50x5mm
  • Length 280mm
  • 6 useful holes
  • Ø8.5mm fixing holes for M8 screws
  • 35mm high fiberglass / polyester insulators
  • Stainless steel bolts for fixing insulators
  • Galvanized steel fixing rail with oblong holes
  • Weight 1.25 Kg / piece
  • Unit packaging
Weight 1,03 kg
