Equipotentiality bar with copper break 50x5mm, 20 useful holes for M8 screws
Equipotentiality bar with copper break 50x5mm, 20 useful holes for M8 screws
91 € w/o tax
91 € w/o tax per piece

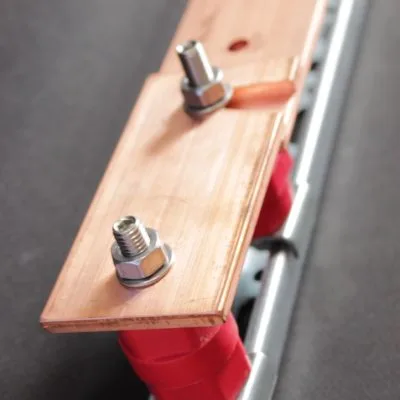

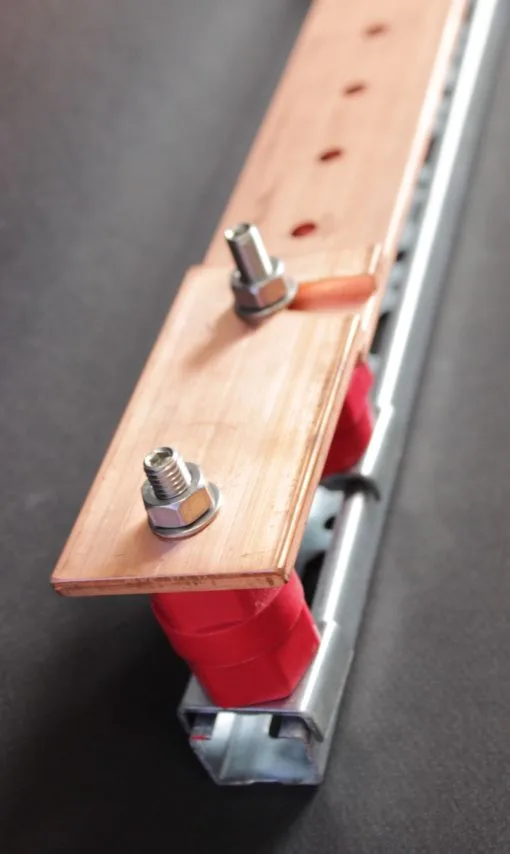

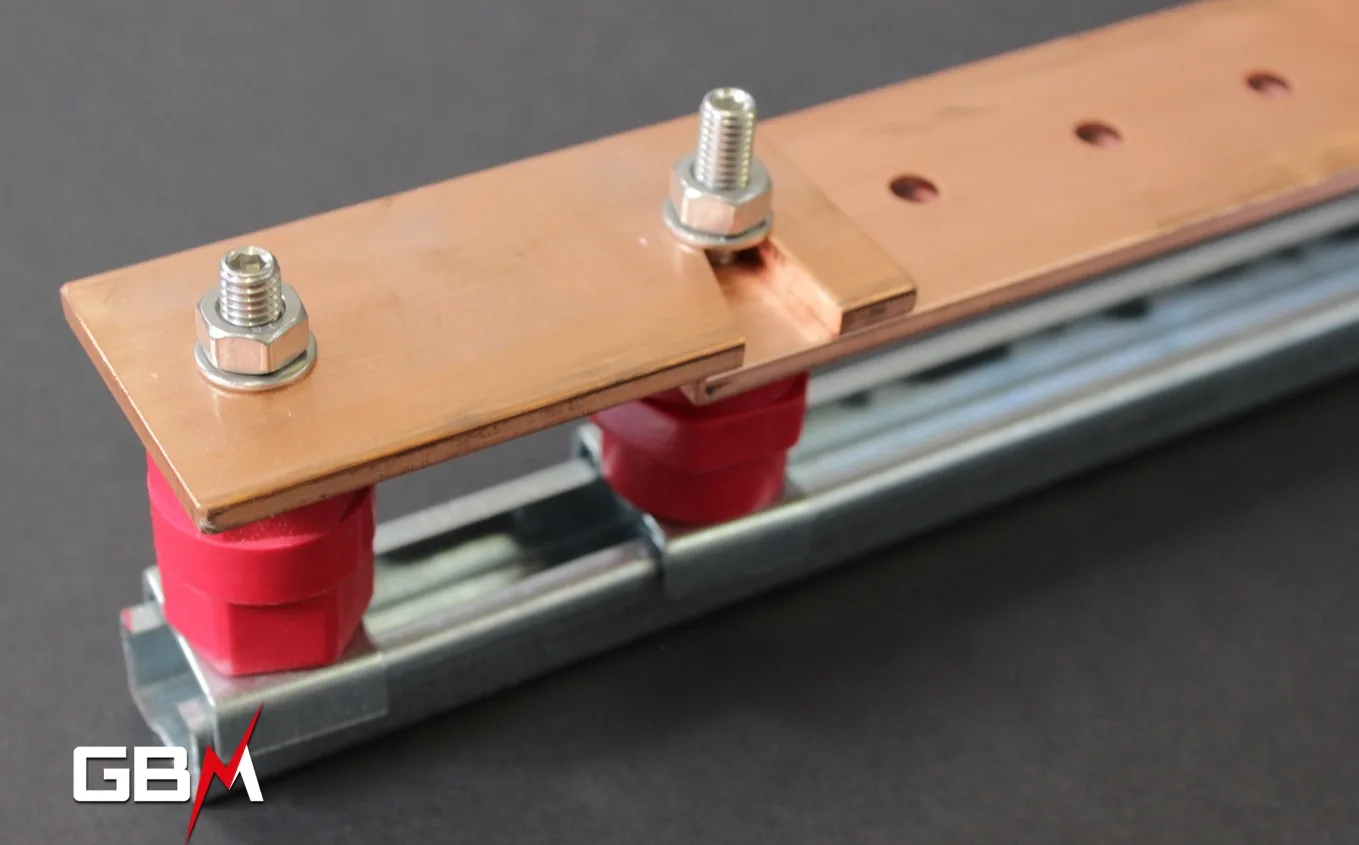

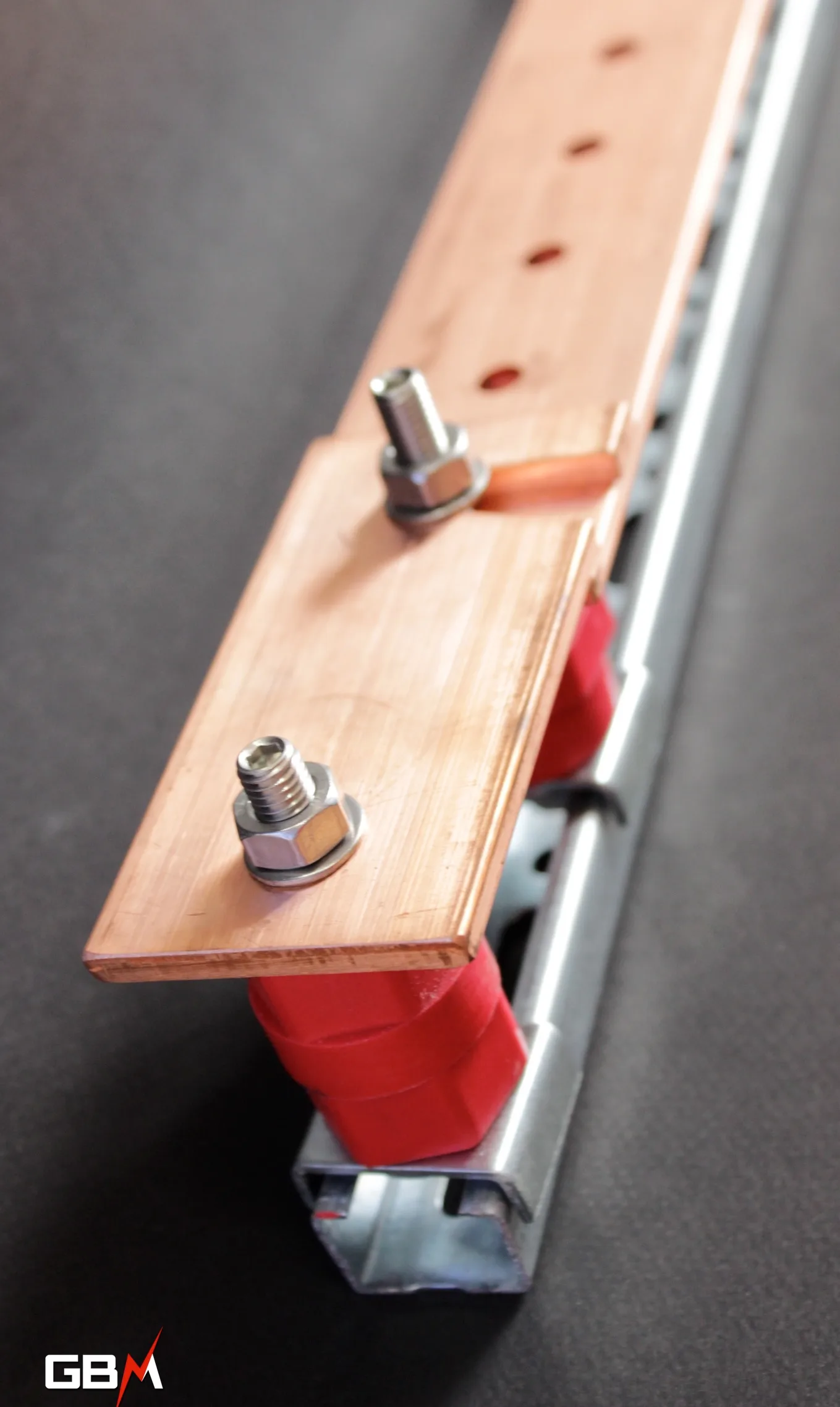

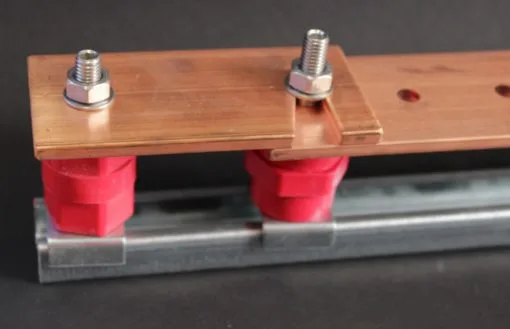

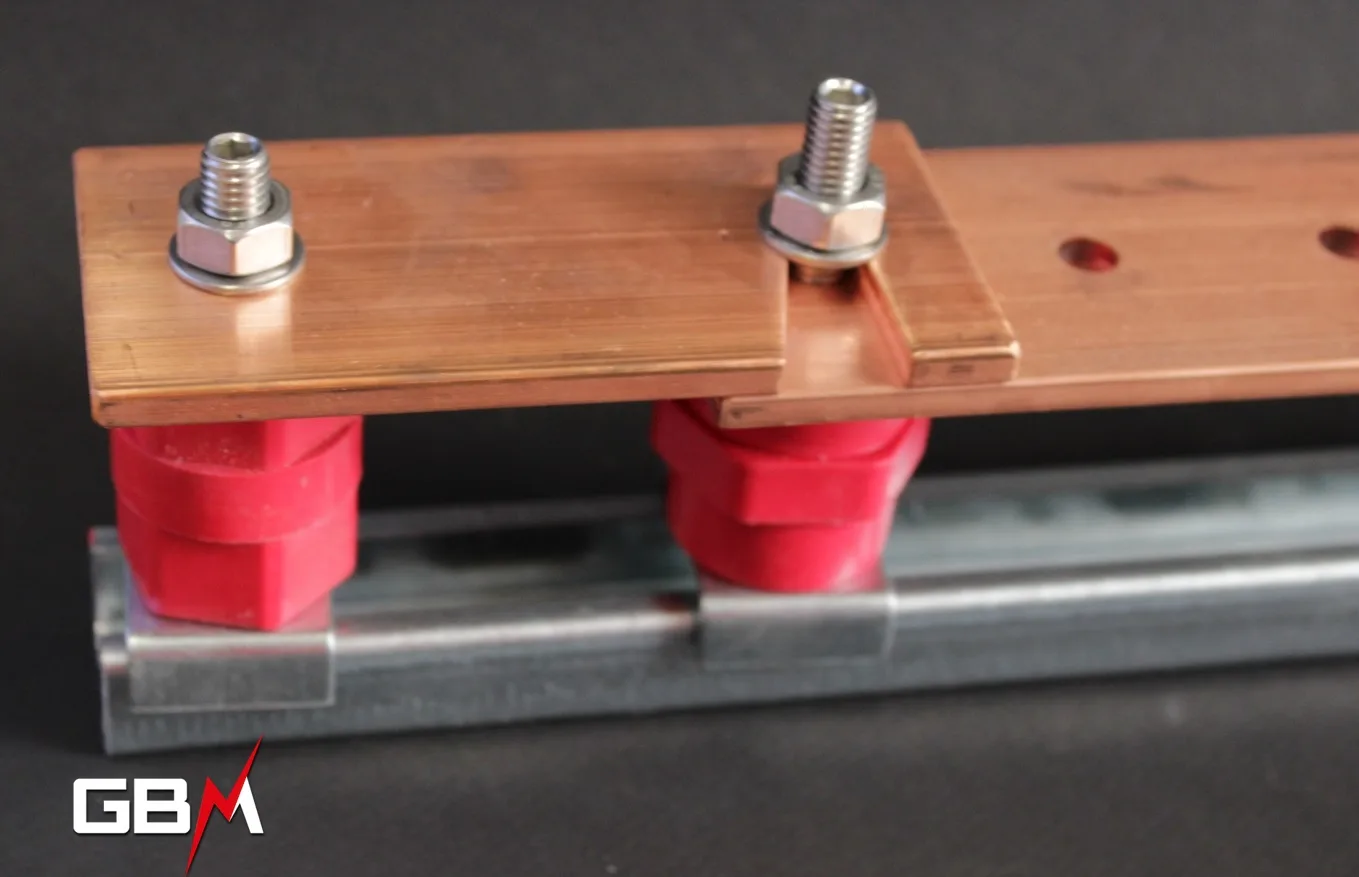

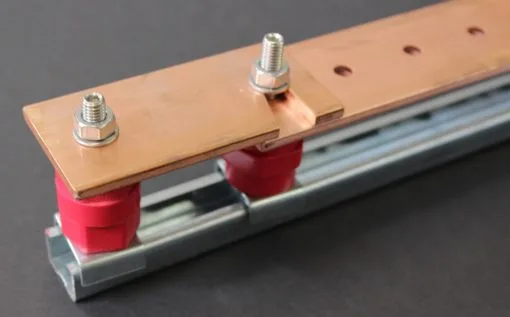

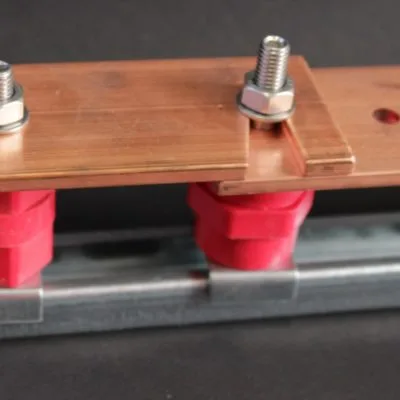

Equipotentiality bar with copper cutoff 50x5mm, Length 840mm 20 useful hofor diameter 8,5mm, mounted on 2 polyester fiberglass insulators height 35mm assembled to a galvanized steel rail with oblong hofor. Stainfors steel bolts.
In stock
The equipotentiality bar is used to bring together the different earth circuits of an installation on the same support, the connections can be fixed by screws to block the connection.
- Copper bar Cu-ETP (CW004A) 50x5mm
- Length 840mm
- Cu-ETP copper breaking (CW004A)
- 20 useful holes
- Ø 8,5mm fixing holes for M8 screws
- 35mm high fiberglass / polyester insulators
- Stainless steel bolts for fixing insulators
- Galvanized steel fixing rail with oblong holes
- Weight 2,75 Kg/piece
- Unit packaging
| Weight | 2,75 kg |
|---|
