Equipotentiality bar with 50x5mm copper cut-off, 15 useful holes for M8 screws
New
Equipotentiality bar with 50x5mm copper cut-off, 15 useful holes for M8 screws
74 € w/o tax
74 € w/o tax per piece

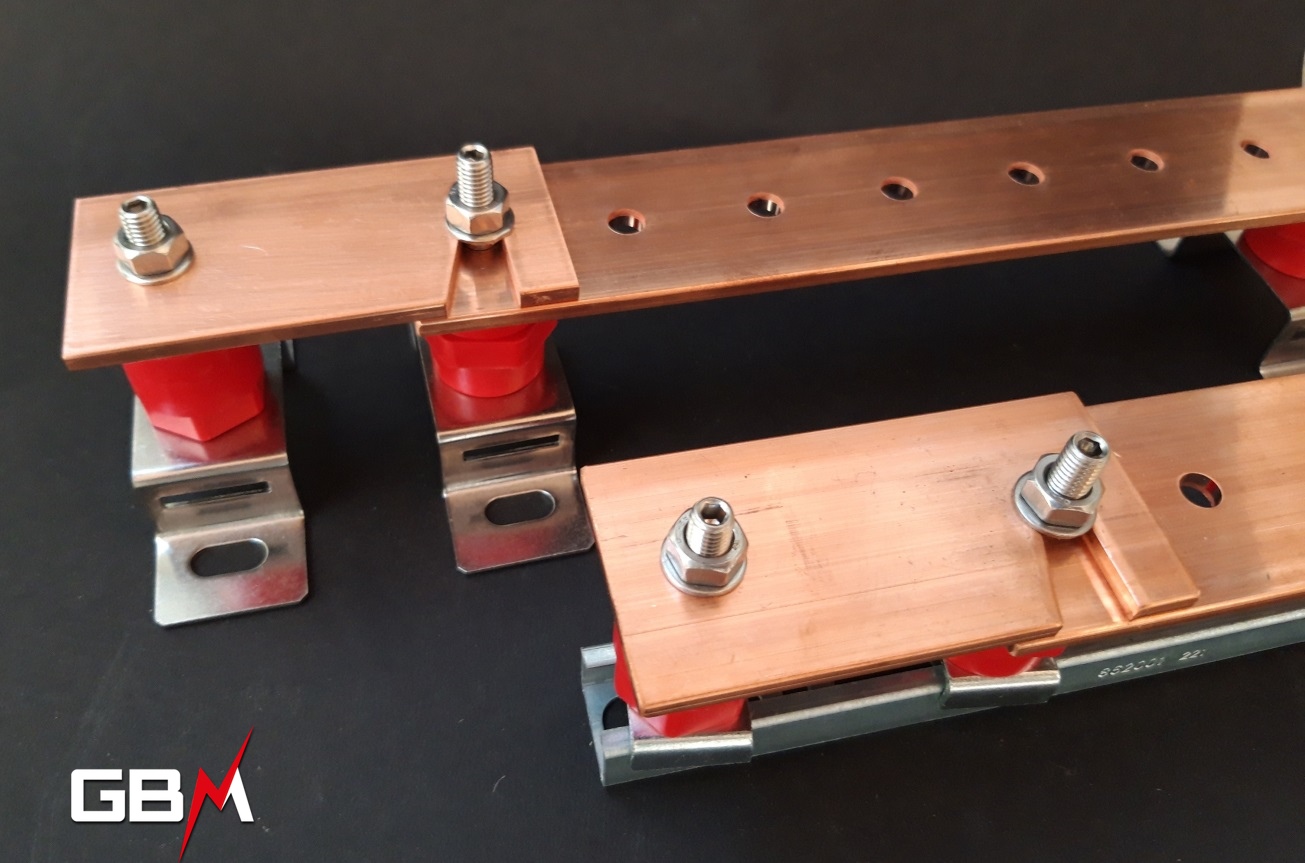

Equipotentiality bar with copper cutoff 50x5mm, length 665mm 15 useful holes diameter 8,5mm, mounted on 2 polyester fiberglass insulators height 35mm assembled to a stainless steel omegabe with oblong holes. Stainless steel bolts.
In stock
The equipotentiality bar is used to bring together the different earth circuits of an installation on the same support, the connections can be fixed by screws to block the connection.
- Copper bar Cu-ETP (CW004A) 50x5mm
- Length 665mm
- Cu-ETP copper breaking (CW004A)
- 15 useful holes
- Ø 8,5mm fixing holes for M8 screws
- 35mm high fiberglass / polyester insulators
- Stainless steel bolts for fixing insulators
- Omegabe fixing in stainless steel 304 provided with oblong holes and a passage for a strip width 20mm maxi
- Weight 1,95 Kg/piece
- Unit packaging
| Weight | 1,95 kg |
|---|
