35mm² earth strap 250mm center distance M8 terminal holes
35mm² earth strap 250mm center distance M8 terminal holes
8,10 € w/o tax
81 € w/o tax for 10 pieces

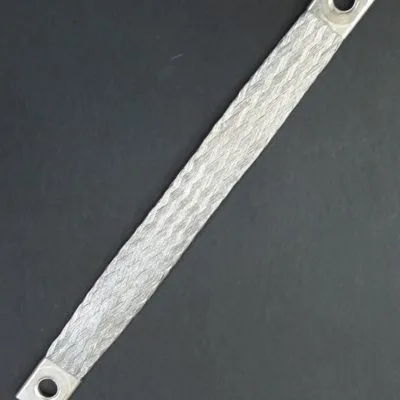

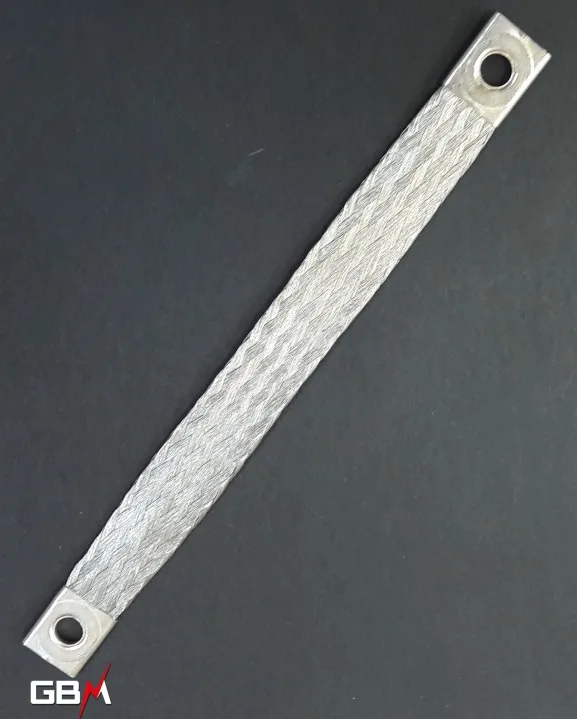

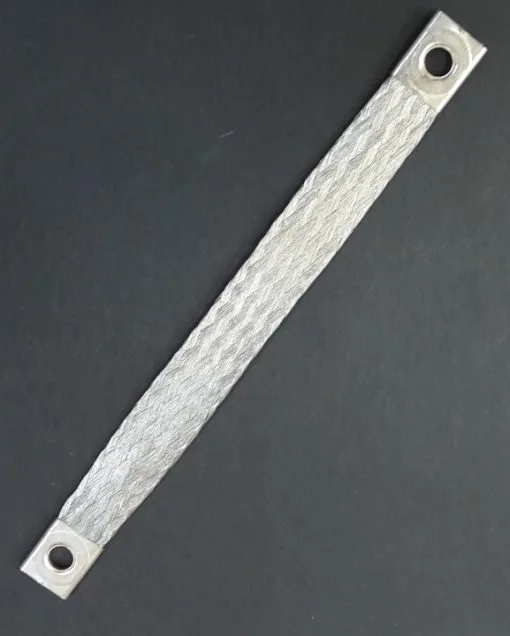

Flat tinned copper ground braid wires 20/100mm, 35mm² earth braid 250mm center distance M8 terminal holes
In stock
Ground braids can be used for earthing and equipotential bonding. The contact pads are made from annealed tubes crimped onto the braid and then punched to the diameter of the required screws.
- 20 / 100mm wires

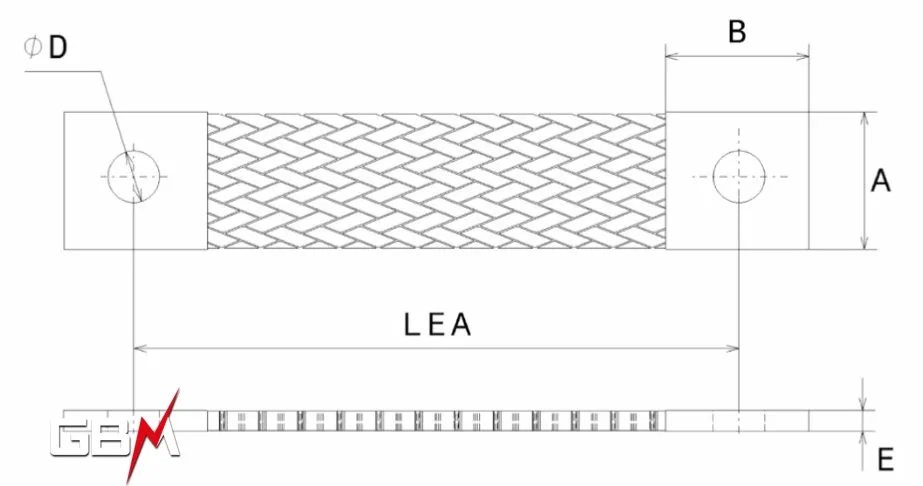

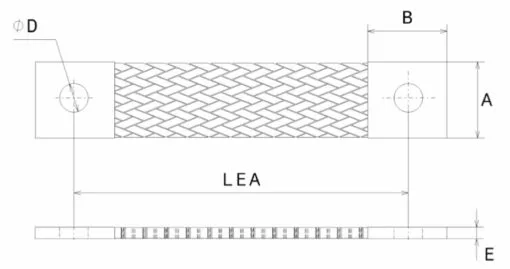

- Dimensions (A) 23.5mm
- Dimensions (B) 25mm
- Thickness 4mm
- Packaging per 10 pieces
- Weight 0,106 Kg / piece
- Length tolerance +/- 2mm
.
| Weight | 0,136 kg |
|---|
