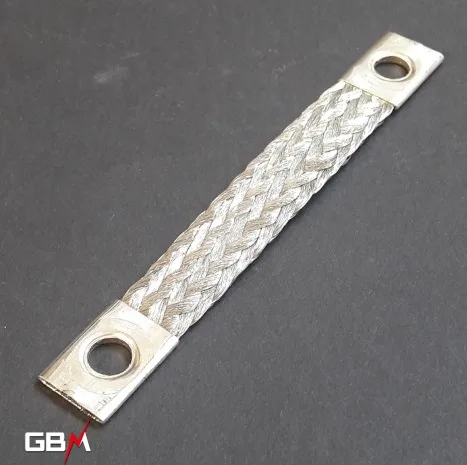

16mm² earth strap 100mm center distance M6 terminal holes

Product code: TMPE16100-6.5 Category:
Flat tinned copper earthing braids with cross section 6 mm² to 75 mm²
tresse de masse sur mesure gbm france cernay alsace
Flat tinned copper earthing braids with cross section 6 mm² to 75 mm²
tresse de masse sur mesure gbm france cernay alsace

16mm² earth strap 100mm center distance M6 terminal holes

2,40 € w/o tax

24 € w/o tax for 10 pieces

Flat tinned copper ground braid wires 15/100mm, 16mm² earth braid 100mm center distance M6 terminal holes.

In stock

Product code: TMPE16100-6.5 Category:

Ground braids can be used for earthing and equipotential bonding. The contact pads are made from annealed tubes crimped onto the braid and then punched to the diameter of the required screws.

  • 15/100mm wires
  • Dimensions (A) 17mm
  • Dimensions (B) 22mm
  • Thickness 2,5mm
  • Packaging per 10 pieces
  • Weight 0,0238 Kg/piece
  • Length tolerance +/- 2mm



Weight 0,0238 kg
