10mm² earth strap 200mm center distance M6 terminal holes

Product code: TMPE10200-6.5 Category:
Flat tinned copper earthing braids with cross section 6 mm² to 75 mm²
tresse de masse sur mesure gbm france cernay alsace
Flat tinned copper earthing braids with cross section 6 mm² to 75 mm²
tresse de masse sur mesure gbm france cernay alsace

10mm² earth strap 200mm center distance M6 terminal holes

3,40 € w/o tax

34 € w/o tax for 10 pieces

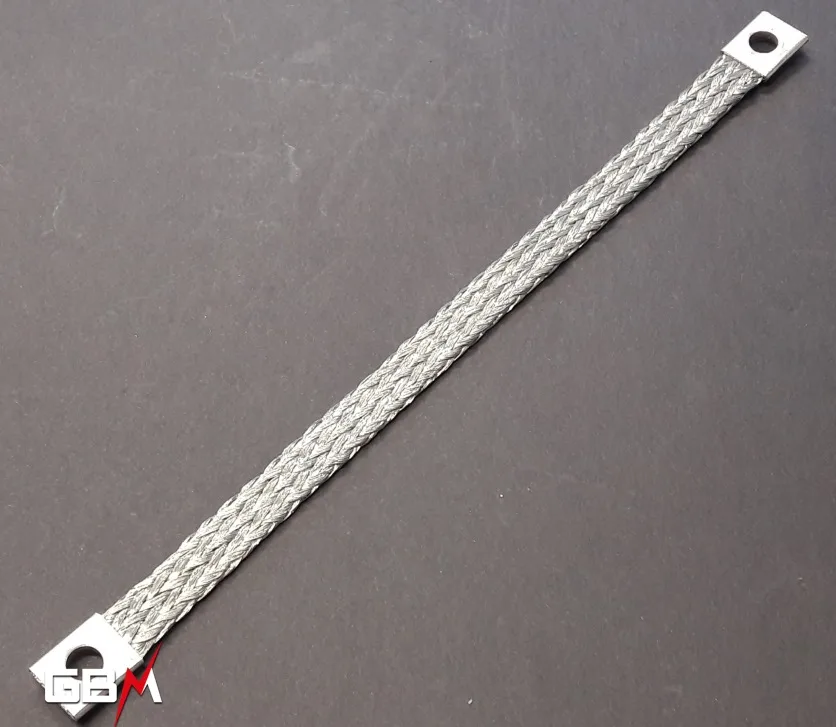

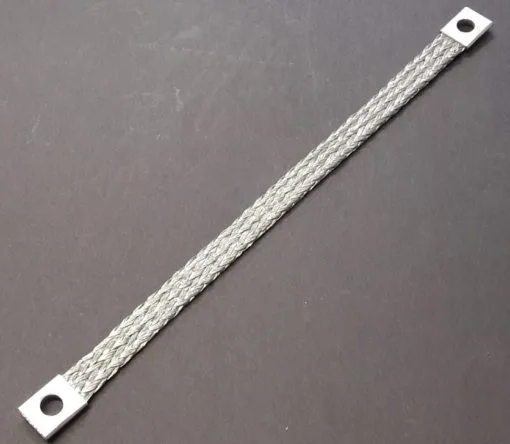

Flat tinned copper ground braid wires 15/100mm, 10mm² earth strap 200mm center distance M6 terminal holes.

In stock

Product code: TMPE10200-6.5 Category:

Ground braids can be used for earthing and equipotential bonding. The contact pads are made from annealed tubes crimped onto the braid and then punched to the diameter of the required screws.

  • 15/100mm wires
  • Dimensions (A) 13mm
  • Dimensions (B) 15mm
  • Thickness 2,4mm
  • Packaging per 10 pieces
  • Weight 0,0225 Kg/piece
  • Length tolerance +/- 2mm



Weight 0,0225 kg
